Operation
I/O support
Slave mode characteristics
In slave mode, the following apply:
n
SPI Clock rates up to 5 MHz (5 Mb/s) are possible.
n
Data is MSB first.
n
It uses Frame Format Mode 0. This means CPOL= 0 (idle clock is low) and CPHA = 0 (data is
sampled on the clock’s leading edge). The picture below diagrams Mode 0.
n
The SPI port is setup for API mode and is equivalent to AP = 1.
The following picture shows the frame format for SPI communications.

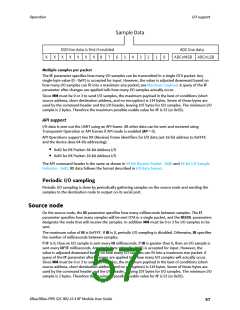

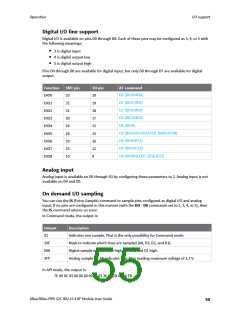

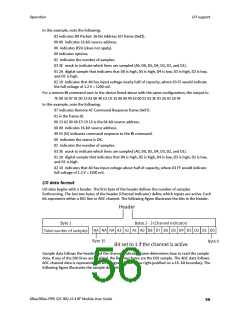

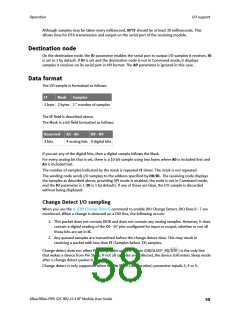

I/O support
The following topics describe analog and digital I/O line support, line passing and output control.
