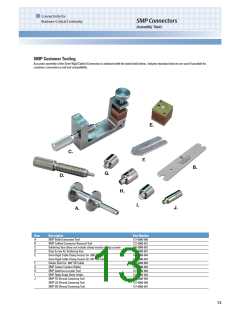

SMP Connectors
Application
Straight Solder Type Cabled Female
Fig 1
Fig 2
Cable Type
VSWR & Freq. Range*
Gold Plated
Figure
M17/151, .047 Semi-Rigid 1.20 Max 0-18 GHz,
127-0692-001
1
1.35 Max 18-26.5 GHz,
1.70 Max 26.5-40 GHz
RG-405, .086 Semi-Rigid 1.20 Max 0-18 GHz,
1.35 Max 18-26.5 GHz,
127-0693-001
2
1.70 Max 26.5-40 GHz
* Specifications dependant on cable ratings
Right Angle Solder Type Cabled Female
Cable Type
VSWR & Freq. Range Gold Plated “A”
“B”
M17/151, .047 Semi-Rigid 1.20 Max 0-18 GHz
127-0692-101 .248 (6.30) .197 (5.00)
RG-405, .086 Semi-Rigid 1.20 Max 0-18 GHz
127-0693-101 .271 (6.88) .209 (5.31)
Straight PC Mount Male Receptacle
Interface
Full Detent
Limited Detent
Smooth Bore
Catcher’s Mit
Freq. Range
0-12 GHz
0-12 GHz
0-12 GHz
0-12 GHz
Passivated*
127-0701-201
127-1701-201
127-2701-201
127-3701-201
“A”
.218 (5.54)
.218 (5.54)
.218 (5.54)
.234 (5.94)
* Base and legs Gold plated brass
Mounting hole layout figure 3 on page 7.
