Application Information (cont.)
Note that in order to avoid additional error, VSUPPLY must be at least 1.5V greater than VOUT. This margin depends on the
value of VSENSE. For VSENSE = 100mV, this margin can be reduced to 1.0V.
RSENSE is chosen based on the threshold VSENSET of sense voltage selected as above, for the chosen threshold load current,
ILOADT
.
VSENSET
RSENSE
=
Equation 4
ILOADT
RGAIN is chosen to give the required threshold output voltage, VOUTT. From Equation 1, the threshold output current is
IOUTT = 0.004 * VSENSET
Equation 1a
Equation 5
VOUTT
RGAIN
=
=
IOUTT
VOUTT
0.004 * VSENSET
or
RGAIN
Design Example
A current monitor is required to provide an output voltage of 2V ±6% when the load current of a 12V supply is 2A. Resistors
are available with 1% tolerance.
The sense and output resistors will contribute a total possible error of 2%, so the ZXCT11xx error must not exceed 4%. From

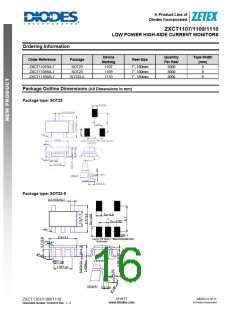

Table 1, the error of ZXCT1107/1109 will be 3.4% if the sense voltage is 100mV. This satisfies the total error requirement of
6%.
Equation 4 gives
RSENSE = 100mV/2A = 50mΩ
Equation 5 gives
2
RGAIN
=
= 5kΩ
0.004 * 0.1
A suitable preferred value is 5.1kꢀ. This gives a systematic error of +2%, which can be compensated elsewhere in the

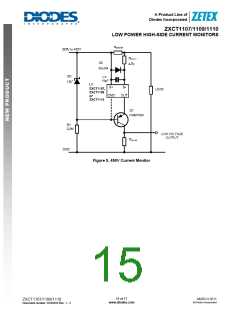

system if desired. Figure 2 shows the resulting schematic.
