Ratio (xFs)
DSM
N/A
MFreq2 MFreq1 MFreq0
Description
SSM
256
384
512
768
QSM
N/A
N/A
N/A
N/A
256
0
0
0
0
1
0
0
1
1
X
0
1
0
1
X
1.0290 MHz to 12.8000 MHz
1.5360 MHz to 19.2000 MHz
2.0480 MHz to 25.6000 MHz
3.0720 MHz to 38.4000 MHz
4.0960 MHz to 51.2000 MHz
N/A
256
384
512
1024
Table 11. MCLK Frequency Settings for TDM & OLM Interface Formats
6.5
INTERFACE FORMATS (ADDRESS 04H)
7
6
5
4
3
2
1
0
FREEZE
AUX_DIF
DAC_DIF2
DAC_DIF1
DAC_DIF0
ADC_DIF2
ADC_DIF1
ADC_DIF0
6.5.1 FREEZE CONTROLS (FREEZE)
Default = 0
Function:
This function will freeze the previous settings of, and allow modifications to be made to the channel
mutes, the DAC and ADC Volume Control/Channel Invert registers without the changes taking effect
until the FREEZE is disabled. To have multiple changes in these control port registers take effect si-
multaneously, enable the FREEZE bit, make all register changes, then disable the FREEZE bit.
6.5.2 AUXILIARY DIGITAL INTERFACE FORMAT (AUX_DIF)
Default = 0
0 - Left Justified
1 - I²S
Function:
This bit selects the digital interface format used for the AUX Serial Port. The required relationship be-
tween the Left/Right clock, serial clock and serial data is defined by the Digital Interface Format and
the options are detailed in Figures 21-22.
6.5.3 DAC DIGITAL INTERFACE FORMAT (DAC_DIF[2:0])
Default = 110
Function:
These bits select the digital interface format used for the DAC Serial Port. The required relationship be-
tween the Left/Right clock, serial clock and serial data is defined by the Digital Interface Format and
the options are detailed in the section “CODEC Digital Interface Formats” on page 32.
Refer to Table 9. “Serial Audio Interface Channel Allocations” on page 36.

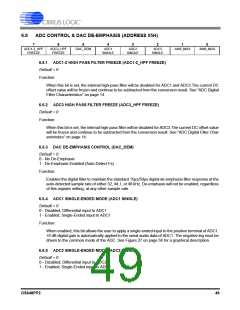

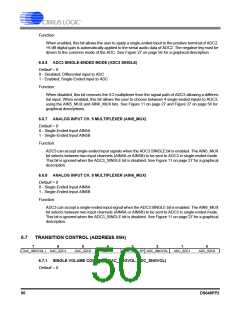

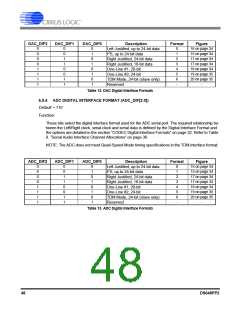

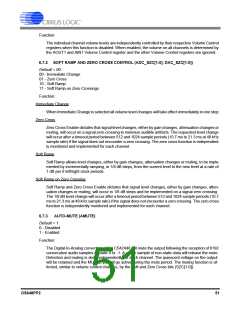

DS648PP2
47
