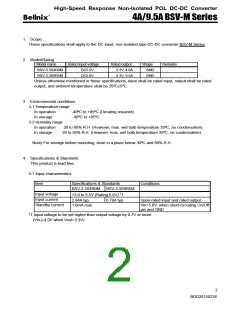

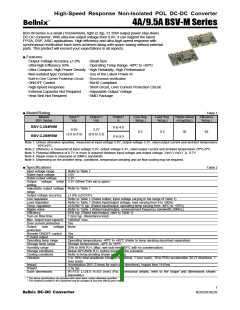

High-Speed Response Non-Isolated POL DC-DC Converter
4A/9.5A BSV-M Series
1. Scope
These specifications shall apply to the DC input, non-isolated type DC-DC converter BSV-M Series.
2. Model/Rating
Model name
Rated input voltage
DC5.0V
Rated output
3.3V, 4.0A
3.3V, 9.5A
Shape
SMD
Remarks
BSV-3.3S4R0M
BSV-3.3S9R5M
DC5.0V
SMD
Unless otherwise mentioned in these specifications, input shall be rated input, output shall be rated
output, and ambient temperature shall be 25ºC±5ºC.
3. Environmental conditions
3-1 Temperature range
In operation
In storage
-40ºC to +85ºC (Derating required)
-40ºC to +85ºC
3-2 Humidity range
In operation
20 to 95% R.H. (However, max. wet bulb temperature 35ºC, no condensation)
20 to 95% R.H. (However, max. wet bulb temperature 35ºC, no condensation)
In storage
Note) For storage before mounting, store in a place below 30ºC and 60% R.H.
4. Specifications & Standards
This product is lead free.
4-1 Input characteristics
Item
Specifications & Standards
Conditions
BSV-3.3S4R0M
BSV-3.3S9R5M
Input voltage
Input current
Standby current
+3.0 to 5.5V (Rating 5.0V) *1
2.84A typ.
6.78A typ.
Upon rated input and rated output
Vin=5.0V, when short-circuiting On/Off
pin and GND
1.0mA max.
*1 Input voltage to be set higher than output voltage by 0.7V or more.
(Vin≧4.0V when Vout=3.3V)
