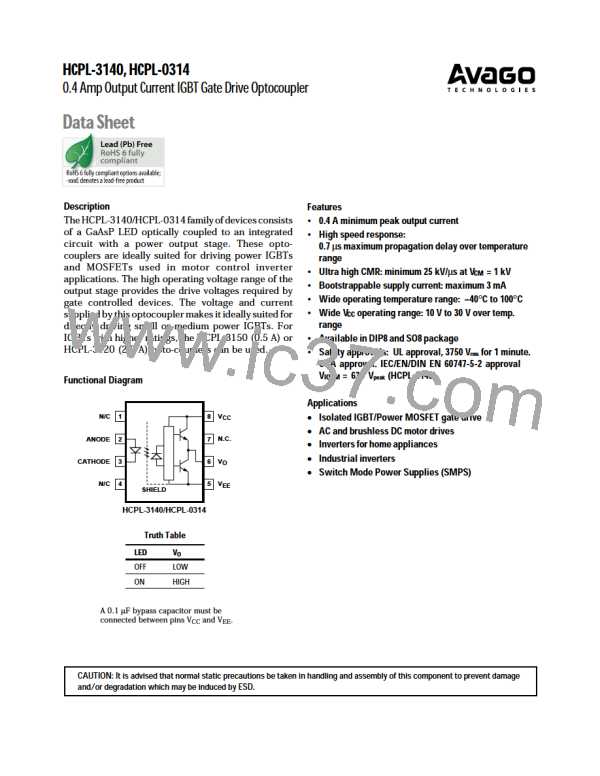

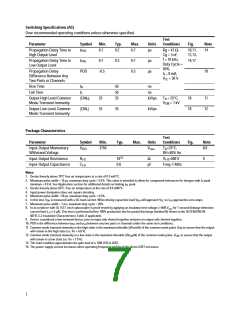

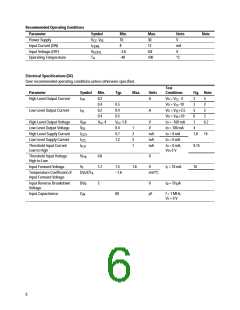

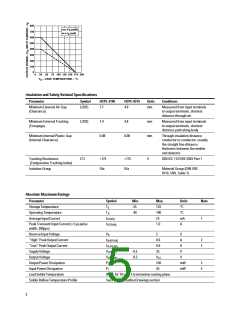

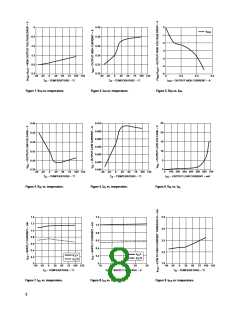

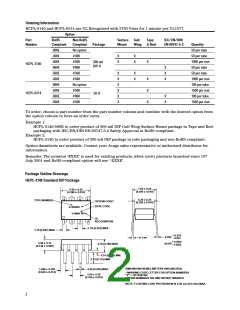

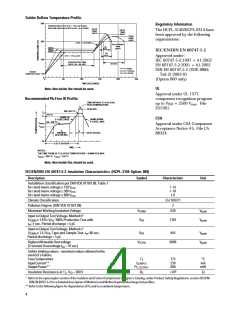

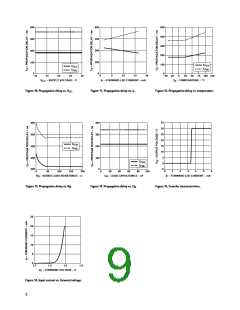

Ordering Information
HCPL-3140 and HCPL-0314 are UL Recognized with 3750 Vrms for 1 minute per UL1577.
Option
Part
Number
RoHS
Compliant
Non RoHS
Compliant
Surface
Mount
Gull
Wing & Reel
Tape
IEC/ EN/ DIN
EN 60747-5-2
Package
Quantity
HCPL-3140
-000E
-300E
-500E
-060E
-360E
-560E
-000E
-500E
-060E
-560E
No option
# 300
50 per tube
50 per tube
1000 per reel
50 per tube
50 per tube
1000 per reel
100 per tube
1500 per reel
100 per tube
1500 per reel
X
X
X
# 500
X
X
300 mil
DIP-8
HCPL-3140
# 060
X
X
X
# 360
X
X
X
X
X
X
X
X
# 560
X
X
X
HCPL-0314
HCPL-0314
No option
# 500
SO-8
# 060
X
X
# 560
To order, choose a part number from the part number column and combine with the desired option from
the option column to form an order entry.
Example 1:
HCPL-3140-560E to order product of 300 mil DIP Gull Wing Surface Mount package in Tape and Reel
packaging with IEC/EN/DIN EN 60747-5-2 Safety Approval in RoHS compliant.
Example 2:
HCPL-3140 to order product of 300 mil DIP package in tube packaging and non RoHS compliant.
Option datasheets are available. Contact your Avago sales representative or authorized distributor for
information.
Remarks: The notation ‘#XXX’ is used for existing products, while (new) products launched since 15th
July 2001 and RoHS compliant option will use ‘-XXXE’.

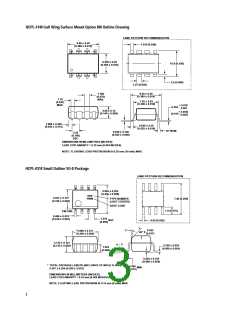

Package Outline Drawings
HCPL-3140 Standard DIP Package
7.62 ± 0.25
9.65 ± 0.25
(0.300 ± 0.010)
(0.380 ± 0.010)
8
1
7
6
5
6.35 ± 0.25
(0.250 ± 0.010)
TYPE NUMBER
OPTION CODE*
DATE CODE
A XXXXZ
YYWW
U R
UL
2
3
4
RECOGNITION
1.78 (0.070) MAX.
1.19 (0.047) MAX.
+ 0.076
- 0.051
0.254
5° TYP.
+ 0.003)
- 0.002)
3.56 ± 0.13
(0.140 ± 0.005)
(0.010
4.70 (0.185) MAX.
0.51 (0.020) MIN.
2.92 (0.115) MIN.
DIMENSIONS IN MILLIMETERS AND (INCHES).
1.080 ± 0.320
0.65 (0.025) MAX.
(0.043 ± 0.013)
* MARKING CODE LETTER FOR OPTION NUMBERS
"V" = OPTION 060
OPTION NUMBERS 300 AND 500 NOT MARKED.
2.54 ± 0.25
(0.100 ± 0.010)
NOTE: FLOATING LEAD PROTRUSION IS 0.25 mm (10 mils) MAX.
2
