Product Specification
M270DTN01.5

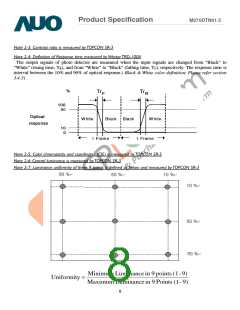

Note 2-3: Contrast ratio is measured byTOPCON SR-3
Note 2-4: Definition of Response time measured byWestarTRD-100A
The output signals of photo detector are measured when the input signals are changed from “Black” to
“White” (rising time, TR), and from “White” to “Black” (falling time, TF), respectively. The response time is
interval between the 10% and 90% of optical response.( Black & White color definition: Please refer section
3.4.3)
%
Tr
Tr
F
R
100
90
Optical
White
Black
White
Black
response
10
0
1 Frame
1 Frame
Note 2-5: Color chromaticity and coordinates (CIE) is measured byTOPCON SR-3
Note 2-6: Central luminance is measured byTOPCON SR-3
Note 2-7: Luminance uniformity of these 9 points is defined as below and measured byTOPCON SR-3
Minimum Luminancein 9 points (1-9)
Uniformity =
Maximum Luminancein 9 Points (1-9)
8
