ATmega64A
Table 13-2 summarizes the function of the overriding signals. The pin and port indexes from Fig-
ure 13-5 are not shown in the succeeding tables. The overriding signals are generated internally
in the modules having the alternate function.
Table 13-2. Generic Description of Overriding Signals for Alternate Functions
Signal
Name
Full Name
Description
PUOE
Pull-up Override
Enable
If this signal is set, the pull-up enable is controlled by the PUOV
signal. If this signal is cleared, the pull-up is enabled when {DDxn,
PORTxn, PUD} = 0b010.
PUOV
DDOE
Pull-up Override Value If PUOE is set, the pull-up is enabled/disabled when PUOV is
set/cleared, regardless of the setting of the DDxn, PORTxn, and
PUD Register bits.
Data Direction
If this signal is set, the Output Driver Enable is controlled by the
DDOV signal. If this signal is cleared, the Output driver is enabled
by the DDxn Register bit.
Override Enable
DDOV
PVOE
Data Direction
Override Value
If DDOE is set, the Output Driver is enabled/disabled when DDOV
is set/cleared, regardless of the setting of the DDxn Register bit.
Port Value Override
Enable
If this signal is set and the Output Driver is enabled, the port value
is controlled by the PVOV signal. If PVOE is cleared, and the
Output Driver is enabled, the port Value is controlled by the
PORTxn Register bit.
PVOV
Port Value Override
Value
If PVOE is set, the port value is set to PVOV, regardless of the
setting of the PORTxn Register bit.
DIEOE
Digital Input Enable
Override Enable
If this bit is set, the Digital Input Enable is controlled by the DIEOV
signal. If this signal is cleared, the Digital Input Enable is
determined by MCU state (Normal mode, sleep modes).
DIEOV
DI
Digital Input Enable
Override Value
If DIEOE is set, the Digital Input is enabled/disabled when DIEOV
is set/cleared, regardless of the MCU state (Normal mode, sleep
modes).
Digital Input
This is the Digital Input to alternate functions. In the figure, the
signal is connected to the output of the Schmitt Trigger but before
the synchronizer. Unless the Digital Input is used as a clock
source, the module with the alternate function will use its own
synchronizer.
AIO
Analog Input/output
This is the Analog Input/output to/from alternate functions. The
signal is connected directly to the pad, and can be used bi-
directionally.

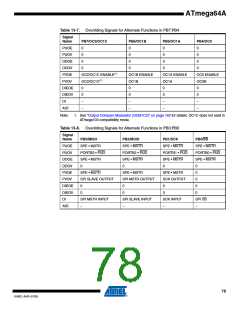

The following subsections shortly describe the alternate functions for each port, and relate the
overriding signals to the alternate function. Refer to the alternate function description for further
details.
