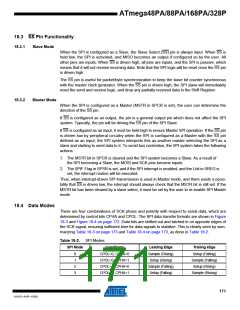

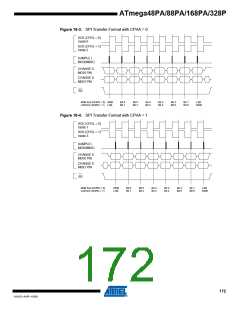

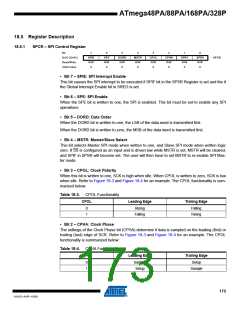

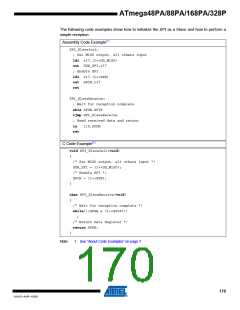

 浏览型号ATMEGA48PA-AU的Datasheet PDF文件第170页浏览型号ATMEGA48PA-AU的Datasheet PDF文件第171页浏览型号ATMEGA48PA-AU的Datasheet PDF文件第172页浏览型号ATMEGA48PA-AU的Datasheet PDF文件第173页浏览型号ATMEGA48PA-AU的Datasheet PDF文件第175页浏览型号ATMEGA48PA-AU的Datasheet PDF文件第176页浏览型号ATMEGA48PA-AU的Datasheet PDF文件第177页浏览型号ATMEGA48PA-AU的Datasheet PDF文件第178页
ATmega48PA/88PA/168PA/328P
• Bits 1, 0 – SPR1, SPR0: SPI Clock Rate Select 1 and 0
These two bits control the SCK rate of the device configured as a Master. SPR1 and SPR0 have
no effect on the Slave. The relationship between SCK and the Oscillator Clock frequency fosc is
shown in the following table:
Table 18-5. Relationship Between SCK and the Oscillator Frequency
SPI2X
SPR1
SPR0
SCK Frequency
fosc/4
0
0
0
0
1
1
1
1
0
0
1
1
0
0
1
1
0
1
0
1
0
1
0
1
fosc/16
fosc/64
fosc/128
fosc/2
fosc/8
fosc/32
fosc/64
18.5.2
SPSR – SPI Status Register
Bit
7
SPIF
R
6
5
4
3
2
1
0
SPI2X
R/W
0
0x2D (0x4D)
Read/Write
Initial Value
WCOL
SPSR
R
0
R
0
R
0
R
0
R
0
R
0
0
• Bit 7 – SPIF: SPI Interrupt Flag
When a serial transfer is complete, the SPIF Flag is set. An interrupt is generated if SPIE in
SPCR is set and global interrupts are enabled. If SS is an input and is driven low when the SPI is
in Master mode, this will also set the SPIF Flag. SPIF is cleared by hardware when executing the
corresponding interrupt handling vector. Alternatively, the SPIF bit is cleared by first reading the
SPI Status Register with SPIF set, then accessing the SPI Data Register (SPDR).
• Bit 6 – WCOL: Write COLlision Flag
The WCOL bit is set if the SPI Data Register (SPDR) is written during a data transfer. The
WCOL bit (and the SPIF bit) are cleared by first reading the SPI Status Register with WCOL set,
and then accessing the SPI Data Register.
• Bit 5..1 – Res: Reserved Bits
These bits are reserved bits in the ATmega48PA/88PA/168PA/328P and will always read as
zero.
• Bit 0 – SPI2X: Double SPI Speed Bit
When this bit is written logic one the SPI speed (SCK Frequency) will be doubled when the SPI
is in Master mode (see Table 18-5). This means that the minimum SCK period will be two CPU
clock periods. When the SPI is configured as Slave, the SPI is only guaranteed to work at fosc/4
or lower.
The SPI interface on the ATmega48PA/88PA/168PA/328P is also used for program memory
and EEPROM downloading or uploading. See page 308 for serial programming and verification.
174
8161D–AVR–10/09
