To make the best of inverter motor measurements:
•
Parameters critical to the measurement of motor inputs (outputs on the secondary side of inverters) can be measured and displayed simultaneously.
Display item
rms value
mn value
fnd value
thd value
unb value
±pk value
dc value
ac value
f value
Measurement details
RMS value of fundamental wave + carrier wave components
RMS value (mean value) close to the fundamental wave component
True fundamental wave component
Displays the distortion factor of measured waveform
Displays the balance between phases
Maximum positive/negative values of waveform that is being measured
Displays a DC component harmful to the motor
RMS value obtained by removing the DC component from the RMS value
Frequency of each phase

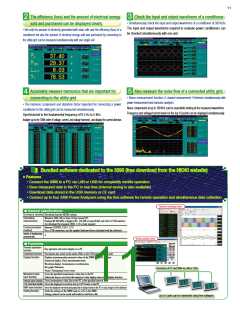

• Efficiency and loss measurement function built-in
The operating efficiency and power loss of an inverter can be displayed when
measuring the inputs and outputs of the inverter simultaneously.
4
Clearly display efficiency and loss of inverters
5
X-Y graph display lets you check the dynamic aracteristics
of inverters
• X-Y graph display function built-in
(X-axis: 1 item, Y-axis: 2 items)
By simply specifying the voltage for the X-axis and the power consumption and efficiency
for the Y-axis, you can display the dynamic characteristics of a motor in real time.
• 4-channel simultaneous harmonic analysis function built-in
(Performed
simultaneously with power measurement)
6
Harmonic measurement indispensable for inverter evaluation
Harmonic analysis is essential for the development and evaluation of inverters
Synchronized to the fundamental wave frequency from 0.5 Hz to 5 kHz
Harmonic analysis up to the 100th order can be performed simultaneously with
power measurement.
• Noise measurement function built-in
(1-channel measurement: Performed
simultaneously with power measurement and harmonic analysis)
7
Evaluation of the troublesome noise of inverters
Noise components at up to 100 kHz can be read while looking at the measured waveforms
Simultaneously display the top 10 point frequency and voltage/current levels
• Waveform monitoring function fully supported
Display the voltage and current waveforms being measured
The carrier frequency components of an inverter are also displayed in real time
8
Waveforms can be observed at 500 kS/s, and fundamental waves can also be checked
• Filter function
A filter function is used to remove the carrier frequency components from the inverter,
and fundamental wave frequency waveforms can be checked in the waveform display.
* The filter function is reflected in the measured values. Please
be careful when you switch to the function during measurement.
Waveform monitoring of carrier frequency
When the 500 Hz filter is turned ON
