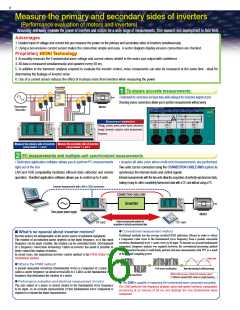

Measure the primary and secondary sides of inverters

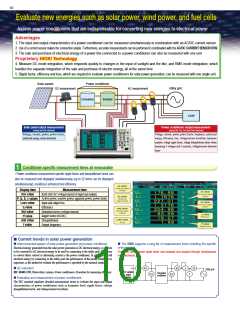

Accurately and easily measure the power of inverters and motors for a wide range of measurements, from research and development to field tests

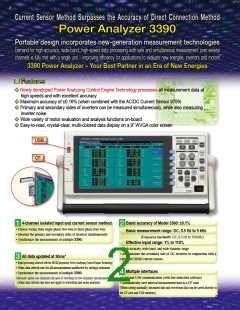

Advantages
1. Isolated input of voltage and current lets you measure the power on the primary and secondary sides of inverters simultaneously.
2. Using a non-invasive current sensor makes the connection simple and easy. A vector diagram display ensures connections are checked.
(Performance evaluation of motors and inverters)
Proprietary HIOKI Technology
3. Accurately measure the Fundamental wave voltage and current values related to the motor axis output with confidence

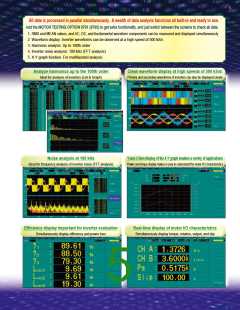

4. All data is measured simultaneously and updated every 50 ms.

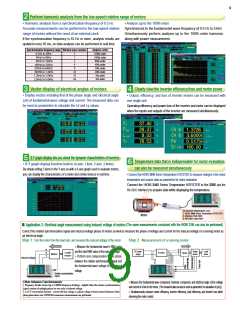

5. In addition to the harmonic analysis required to evaluate the inverter control, noise components can also be measured at the same time - ideal for
determining the leakage of inverter noise
6. Use of a current sensor reduces the effect of in-phase noise from inverters when measuring the power
Inverter
Three-phase
three-wire

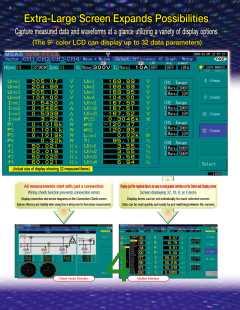

• Understand the connections and input states while looking at the connection diagram screen
Checking unsure connections allows you to perform measurements without worry
Motor
1
To ensure accurate measurements:
Voltage, current, power, power factor, ±electrical
energy, harmonic analysis, noise measurement,
frequency
Measure the primary side of inverters Measure the secondary side of inverters
(Using channels 1, 2, and 3)
(Using channels 1, 2, and 3)
Measurement parameters

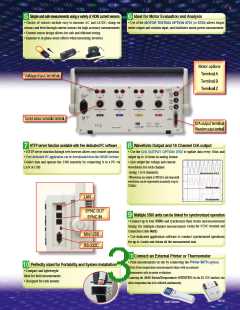

• Dedicated application software allows you to perform PC measurements
right out of the box
LAN and USB compabitility facilitates efficient data collection and remote
operation. Bundled application software allows you to control up to 4 units.
Interval measurement with LAN or USB connection
2
PC measurements and multiple-unit synchronized measurements
• Acquire all data even when multi-unit measurements are performed
Two units can be connected using the
CONNECTION CABLE 9683
(option)
to
synchronize the internal clocks and control signals.
Interval measurements with the two units allow the acquisition of perfectly synchronized data,
making it easy to collect completely harmonized data with a CF card without using a PC.
CONNECTION CABLE 9683
Inverter
PC
Three-phase power supply
CF card
Interval measurement enables the
acquisition of perfectly synchronized data
Motor
CF card
■
What's so special about inverter motors?
●
Conventional measurement method
Inverter motors are indispensable as the power source of industrial equipment
The rotation of an induction motor depends on the input frequency, so if this input
frequency can be made variable, the rotation can be controlled freely. Development
of a frequency conversion technology called an inverter has made it possible to
freely control the rotation of motors.
In recent years, the mainstream inverter control method is the
PWM (Pulse-width
Modulation) method.
Traditional methods use the average rectified RMS indication (Mean) in order to obtain
a component value close to the fundamental wave frequency from a pseudo sinusoidal
waveform (fundamental wave + carrier wave) to be input. To measure an accurate fundamental
component, frequency analysis was required; however, the conventional processing method
was not practical because it could barely perform real-time measurements with FFT as a result
of the limited computing power.
Mean value
●
What is the PWM method?
A pseudo sinusoidal waveform (fundamental wave) is comprised of a pulse train
called a carrier frequency (at about several kHz to 15 kHz) as the fundamental wave
frequency that determines the rotation of a motor.
Full-wave rectification
PWM waveform
Mean-value processing & coefficient processing
Mean value
(average rectified RMS indication value)*
* Method to measure RMS values at a single frequency
●

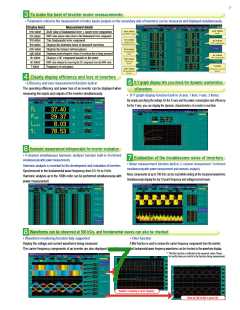

Performance evaluation and electrical measurement of motor
The axis output of a motor is closely related to the fundamental wave frequency
to be input, so an accurate measurement of this fundamental wave component is
required to evaluate the input characteristics.
●
The
3390
is capable of measuring the fundamental wave component accurately
The 3390 performs this frequency analysis using high-speed harmonic computation
processing at an interval of 50 ms and displays the true fundamental wave
component.
