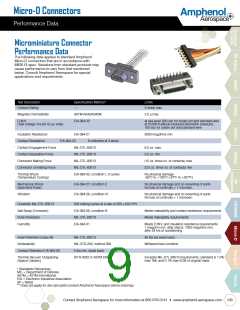

Micro-D Connectors
Performance Data
Amphenol
Aerospace
Microminiature Connector
Performance Data
The following data applies to standard Amphenol
Micro-D connectors that are in accordance with
M83513 spec. Variations from standard products may
cause performance to vary from that mentioned
below. Consult Amphenol Aerospace for special
applications and requirements.
Test Description
Contact Rating
Specification/ Method *
---
Limits
3 amps max.
Magnetic Permeability
ASTM-A342/A342M
EIA-364-20
2.0 µ max.
D.W.V.
at sea level: 600 vac for solder pot and standard wire
at 70,000 ft altitude (reduced barometric pressure):
150 vac for solder pot and standard wire
(Test voltage rms 60 Hz ac volts)
Insulation Resistance
EIA-364-21
5000 megohms min.
Contact Resistance
EIA-364-23
8 milliohms at 3 amps
Contact Engagement Force
Contact Separation Force
Connector Mating Force
Connector Unmating Force
MIL-DTL-83513
6.0 oz. max.
MIL-DTL-83513
0.5 oz. min.
MIL-DTL-83513
(10 oz. times no. of contacts) max.
(0.5 oz. times no. of contacts) min.
MIL-DTL-83513
Thermal Shock
(Temperature Cycling)
EIA-364-32, condition I, 5 cycles
No physical damage
-55°C to +125°C (-67°F to +257°F)
Mechanical Shock
(Specified Pulse)
EIA-364-27, condition E
EIA-364-28, condition IV
No physical damage and no loosening of parts
No loss of continuity > 1 microsec.
Vibration
No physical damage and no loosening of parts
No loss of continuity > 1 microsec.
Durability MIL-DTL-83513
Salt Spray (Corrosion)
Fluid Immersion
500 mating cycles at a rate of 200 100 CPH
EIA-364-26, condition B
MIL-DTL-83513
Meets mateability and contact resistance requirements
Meets mateability requirements
Humidity
EIA-364-31
Meets D.W.V. and insulation resistance requirements
1 megohm min. after step 6, 1000 megohms min.
after 24 hrs of conditioning
Insert Retention (class M)
Solderability
MIL-DTL-83513
50 lbs psi (axial load)
MIL-STD-202, method 208
5 lbs min. (axial load)
SP-R-0022 or ASTM E595
Withstand test condition
Contact Retention EIA-364-29
Thermal Vacuum Outgassing
(Space Classes)
Exceeds MIL-DTL-83513 requirements; standard is 1.0%
max TML and 0.1% max VCM of original mass
* Standards References
MIL = Department of Defense
ASTM = ASTM International
EIA = Electronic Industries Association
SP = NASA
** Does not apply for die-cast parts (consult Amphenol Aerospace before ordering)
Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com
