Micro-D Connectors
Specifications
Amphenol
Aerospace
The Amphenol Micro-D microminiature connector series offers
Pin and socket contacts are epoxy retained in high grade ther-
moplastic insulators. The contact system has proven reliability,
exceeding the performance specifications of MIL-DTL-83513.
proven military spec performance and reliability in rectangular
and strip line micro connectors.
Microminiature connectors are available in the following styles:
• Rectangular D Style
Terminations are available in a broad range including:
• Solder cup
• Terminated to wire harness
• Vertical and right angle PCB
• Strip line Style
• Filtered Connectors
• High Density Card
• Strip and custom card edge configurations

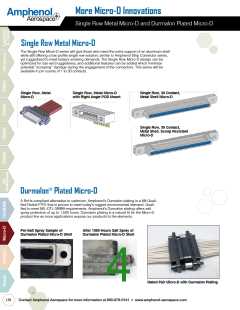

• New single row metal style (see pg 136)
• New keyed Micro-D Style (see pg 135)
Micro-D Shell materials:
• Plastic
• Metal
Micro-D Contacts:
• New Composite (see pg 135)
• New Durmalon® (see pg 136) and a variety of finishes
• Contacts on .050 (1.27) center.
• Inserts in Micro-D miniature connectors are available with
signal and coax/power contacts.
A broad range of mounting hardware is available (jackscrews,
posts, guide pins) as well as straight and angled backshells.
The Amphenol microminiature contact system employs a
precision stamped and formed pin contact recessed within the
plug insulator. The socket contact is a precision fabricated tube.
Microminiature Connector
The following data applies to standard Amphenol Micro-D connectors with wires or PCB
termination. Variations from standard products may cause performance to vary from that
mentioned below. Consult Amphenol Aerospace for special applications and requirements.
Specifications
Shell Material
Std. Metal (100, 106, 110 & M13 Series):
104 Series:
Std. Plastic (101, 102 & 105 Series):
High Temp Plastic:
Aluminum alloy 6061-T6 per QQ-A-200/8
Stainless steel
Polyphenylene sulfide (Ryton)
High performance thermoplastic (PEEK or equivalent)
Shell Finish
(Metal Shell Only)
Anodize **
Cadmium
Gold
Irridite/Alodine **
Electroless Nickel
Tin
Insulator / PCB Backshell
Contacts
Polyphenylene sulfide (Ryton) per MIL-M-24519, type GST-40F; color: black
Copper alloy, 50 micro-inches gold plate over nickel
Stainless steel, passivated
Hardware
Potting Material
Std. Epoxy:
High Temp Epoxy:
EP1730-1 or equivalent; color: black
EP173859 or equivalent
Wire
Insulated Wire:
MIL-W-16878/4 or /6 (available 7 or 19 strands)
MIL-W-22759/11 or /33
Copper per A-A-59551 (QQ-W-343)
Solid Uninsulated Wire:
Coupling
Friction or Jackscrews into jackposts/threaded Inserts
.050 (1.27) centers
Contact Spacing
Shell Styles (Gender)
Number of Contacts
Plug (pin contacts) and receptacle (socket contacts)
Standard Micro-D:
9,15, 21, 25, 31, 37, 51, 69, 100
Combo (Hybrid) Micro-D:
7W2 or 7C2 (5 signal, 2 power/coax)
24W4 or 24C4 (20 signal, 4 power/coax)
50, 54, 58, 62, 66, 70, 74, 104, 112, 120, 128, 136, 144, 152
1 thru 30 (no guide pins)
High Density Connector (106 Series):
Strip Connector (105 Series):
1 thru 29 (guide pin on one end)
1 thru 28 (guide pin on both ends)
Coaxial Cable
Wire Size
RG-178/U
#24 thru #32 AWG (largest to smallest diameter)
Contact Termination
Multiple indent crimp
** Does not apply for die-cast parts (consult Amphenol Aerospace before ordering)
