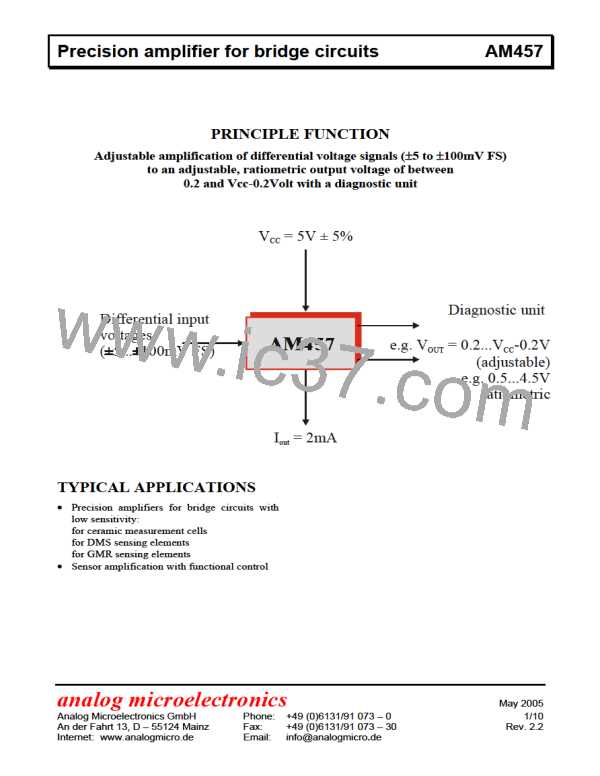

Precision amplifier for bridge circuits

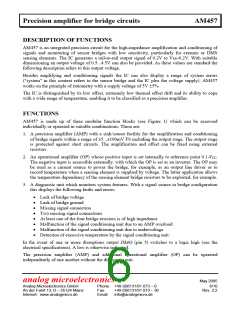

DESCRIPTION OF FUNCTIONS
AM457
AM457 is an integrated precision circuit for the high-impedance amplification and conditioning of
signals and monitoring of sensor bridges with low sensitivity, particularly for ceramic or DMS
sensing elements. The IC generates a rail-to-rail output signal of 0.2V to Vcc-0.2V. With suitable
dimensioning an output voltage of 0.5...4.5V can also be provided. As these values are standard the
following description refers to this output voltage.
Besides amplifying and conditioning signals the IC can also display a range of system errors
("system" in this context refers to the sensor bridge and the IC plus the voltage supply). AM457
works on the principle of ratiometry with a supply voltage of 5V
±5%.
The IC is distinguished by its low offset, extremely low thermal offset drift and its ability to cope
with a wide range of temperature, enabling it to be classified as a precision amplifier.
FUNCTIONS

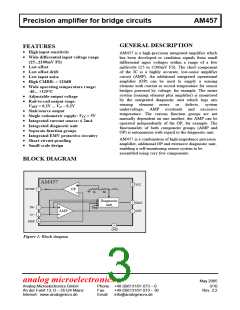

AM457 is made up of three modular function blocks (see Figure 1) which can be accessed
individually or operated in suitable combinations. These are:
1. A precision amplifier (AMP) with a sink/source facility for the amplification and conditioning
of bridge signals within a range of
±5...±100mV
FS including the output stage. The output stage
is protected against short circuits. The amplification and offset can be fixed using external
resistors.
2. An operational amplifier (OP) whose positive input is set internally to reference point 0.1⋅V
CC
.
The negative input is accessible externally, with which the OP is set as an inverter. The OP may
be used as a current source to power the bridge, for example, as an output line driver or to
record temperature when a sensing element is supplied by voltage. The latter application allows
the temperature dependency of the sensing element bridge resistors to be exploited, for example.
3. A diagnostic unit which monitors system features. With a signal source in bridge configuration
this displays the following faults and errors:
•
•
•
•
•
•
•
•
Lack of bridge voltage
Lack of bridge ground
Missing signal connection
Two missing signal connections
At least one of the four bridge resistors is of high impedance
Malfunction of the signal conditioning unit due to an AMP overload
Malfunction of the signal conditioning unit due to undervoltage
Detection of excessive temperature by the signal conditioning unit.
In the event of one or more disruptions output
DIAG
(pin 5) switches to a logic high (see the
electrical specifications). A low is otherwise indicated.
The precision amplifier (AMP) and additional operational amplifier (OP) can be operated
independently of one another without the diagnostic unit.
