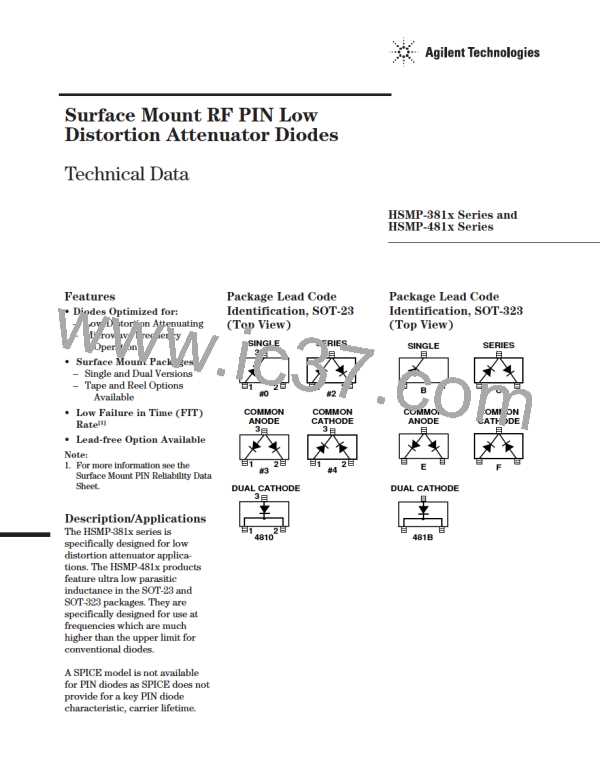

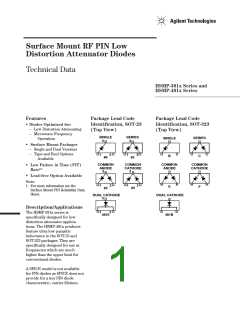

Surface Mount RF PIN Low
Distortion Attenuator Diodes
Technical Data
HSMP-381x Series and
HSMP-481x Series
Features
Package Lead Code
Identification, SOT-23
(Top View)
Package Lead Code
Identification, SOT-323
(Top View)
• Diodes Optimized for:
– Low Distortion Attenuating
– Microwave Frequency
Operation
SINGLE
3
SERIES
3
SERIES
SINGLE
• Surface Mount Packages
– Single and Dual Versions
– Tape and Reel Options
Available
1
2
1
2
B
C
#0
#2
COMMON
ANODE
3
COMMON
CATHODE
3
COMMON
ANODE
COMMON
CATHODE
• Low Failure in Time (FIT)
Rate[1]
• Lead-free Option Available
Note:
1
2
1
2
1. For more information see the
Surface Mount PIN Reliability Data
Sheet.
E
F
#4
#3
DUAL CATHODE
DUAL CATHODE
3
Description/Applications
The HSMP-381x series is
1
2
4810
481B
specifically designed for low
distortion attenuator applica-
tions. The HSMP-481x products
feature ultra low parasitic
inductance in the SOT-23 and
SOT-323 packages. They are
specifically designed for use at
frequencies which are much
higher than the upper limit for
conventional diodes.
A SPICE model is not available
for PIN diodes as SPICE does not
provide for a key PIN diode
characteristic, carrier lifetime.
