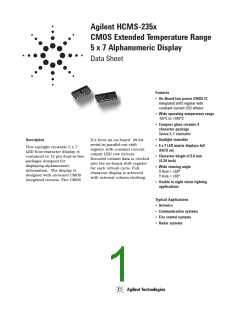

Agilent HCMS-235x
CMOS Extended Temperature Range
5 x 7 Alphanumeric Display
Data Sheet
Features
• On-Board low power CMOS IC
Integrated shift register with
constant current LED drivers
• Wide operating temperature range
-55°C to +100°C
• Compact glass ceramic 4
character package
Series X-Y stackable
• Sunlight viewable
Description
ICs form an on-board 28-bit
serial-in/parallel-out shift
register with constant current
output LED row drivers.
Decoded column data is clocked
into the on-board shift register
for each refresh cycle. Full
character display is achieved
with external column strobing.
• 5 x 7 LED matrix displays full
ASCII set
This sunlight viewable 5 x 7
LED four-character display is
contained in 12 pin dual-in-line
packages designed for
• Character height of 5.0 mm
(0.20 inch)
displaying alphanumeric
• Wide viewing angle
X Axis = ±50°
Y Axis = ±±5°
information. The display is
designed with on-board CMOS
integrated circuits. Two CMOS
• Usable in night vision lighting
applications
Typical Applications
• Avionics
• Communication systems
• Fire control systems
• Radar systems
