AD9834
EVALUATION BOARD
SYSTEM DEVELOPMENT PLATFORM
The system development platform (SDP) is a hardware and
software evaluation tool for use in conjunction with product
evaluation boards. The SDP board is based on the Blackfin® BF527
processor with USB connectivity to the PC through a USB 2.0 high
speed port. For more information about this device, go to:
www.analog.com/en/embedded-processing-
dsp/blackfin/bf527sdp-hw/processors/product.html.
Note that the SDP board is sold separately from the AD9834
evaluation board.
AD9834 TO SPORT INTERFACE
The Analog Devices SDP board has a SPORT serial port that is
used to control the serial inputs to the AD9834 . The connections
are shown in Figure 39.
Figure 40. AD9834 Evaluation Software
AD9834
FSYNC
SCLK
SPORT_TFS

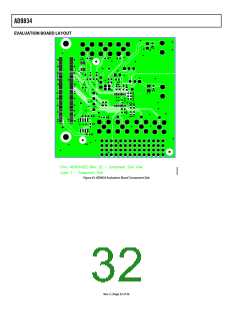

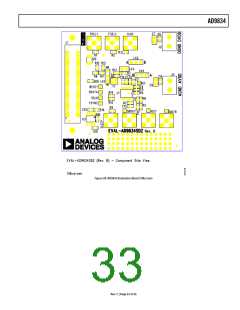

The DDS evaluation kit includes a populated, tested AD9834
PCB. Software is available with the evaluation board that allows

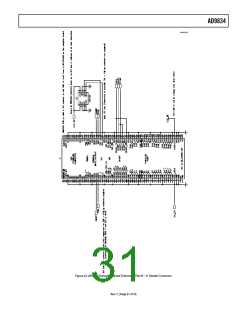

the user to easily program the AD9834. The schematics of the
AD9834 evaluation board are shown in Figure 41 and Figure 42.
The software runs on any IBM-compatible PC that has Microsoft®
Windows® 95, Windows 98, Windows ME, Windows 2000 NT®,
or Windows 7 installed.
SPORT_TSCLK
SDATA
SPORT_DTO
ADSP-BF527
Figure 39. SDP to AD9834 Interface
The AD9834 evaluation board allows designers to evaluate the high
performance AD9834 DDS modulator with a minimum of effort.
The GUI interface for the AD9834 evaluation board is shown in
Figure 40.
Additional details can be found in the EVAL-AD9834EB data
sheet that is available on the software CD and the AD9834
product page.
XO vs. EXTERNAL CLOCK
The AD9834 can operate with master clocks up to 75 MHz. A
75 MHz general oscillator is included on the evaluation board.
However, this oscillator can be removed and, if required, an
external CMOS clock can be connected to the part.
Two options for the general oscillator are:
•
•
AEL 301 series crystals oscillators, AEL Crystals, Ltd.
SG-310SCN oscillators, Epson Toyocom Corporation
POWER SUPPLY
Power to the AD9834 evaluation board can be provided from
USB connector or externally through pin connections. The
power leads should be twisted to reduce ground loops.
Rev. C | Page 29 of 36
