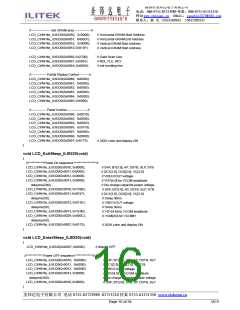

LCD_CtrlWrite_ILI9320(0x003D, 0x0700);
//------------------ Set GRAM area ---------------//
LCD_CtrlWrite_ILI9320(0x0050, 0x0000);
LCD_CtrlWrite_ILI9320(0x0051, 0x00EF);
LCD_CtrlWrite_ILI9320(0x0052, 0x0000);
LCD_CtrlWrite_ILI9320(0x0053, 0x013F);
// Horizontal GRAM Start Address
// Horizontal GRAM End Address
// Vertical GRAM Start Address
// Vertical GRAM Start Address
LCD_CtrlWrite_ILI9320(0x0060, 0x2700);
LCD_CtrlWrite_ILI9320(0x0061, 0x0001);
LCD_CtrlWrite_ILI9320(0x006A, 0x0000);
// Gate Scan Line
// NDL,VLE, REV
// set scrolling line
//-------------- Partial Display Control ---------//
LCD_CtrlWrite_ILI9320(0x0080, 0x0000);
LCD_CtrlWrite_ILI9320(0x0081, 0x0000);
LCD_CtrlWrite_ILI9320(0x0082, 0x0000);
LCD_CtrlWrite_ILI9320(0x0083, 0x0000);
LCD_CtrlWrite_ILI9320(0x0084, 0x0000);
LCD_CtrlWrite_ILI9320(0x0085, 0x0000);
//-------------- Panel Control -------------------//
LCD_CtrlWrite_ILI9320(0x0090, 0x0010);
LCD_CtrlWrite_ILI9320(0x0092, 0x0000);
LCD_CtrlWrite_ILI9320(0x0093, 0x0003);
LCD_CtrlWrite_ILI9320(0x0095, 0x0110);
LCD_CtrlWrite_ILI9320(0x0097, 0x0000);
LCD_CtrlWrite_ILI9320(0x0098, 0x0000);
LCD_CtrlWrite_ILI9320(0x0007, 0x0173);
// 262K color and display ON
}
void LCD_ExitSleep_ILI9320(void)
{
//*************Power On sequence ******************//
LCD_CtrlWrite_ILI9320(0x0010, 0x0000);
LCD_CtrlWrite_ILI9320(0x0011, 0x0000);
LCD_CtrlWrite_ILI9320(0x0012, 0x0000);
LCD_CtrlWrite_ILI9320(0x0013, 0x0000);
delayms(200);
// SAP, BT[3:0], AP, DSTB, SLP, STB
// DC1[2:0], DC0[2:0], VC[2:0]
// VREG1OUT voltage
// VDV[4:0] for VCOM amplitude
// Dis-charge capacitor power voltage
// SAP, BT[3:0], AP, DSTB, SLP, STB
// DC1[2:0], DC0[2:0], VC[2:0]
LCD_CtrlWrite_ILI9320(0x0010, 0x17B0);
LCD_CtrlWrite_ILI9320(0x0011, 0x0137);
delayms(50);
// Delay 50ms
LCD_CtrlWrite_ILI9320(0x0012, 0x013B);
delayms(50);
// VREG1OUT voltage
// Delay 50ms
LCD_CtrlWrite_ILI9320(0x0013, 0x0E00);
LCD_CtrlWrite_ILI9320(0x0029, 0x000F);
delayms(50);
// VDV[4:0] for VCOM amplitude
// VCM[4:0] for VCOMH
LCD_CtrlWrite_ILI9320(0x0007, 0x0173);
// 262K color and display ON
}
void LCD_EnterSleep_ILI9320(void)
{
LCD_CtrlWrite_ILI9320(0x0007, 0x0000);
// display OFF
//************* Power OFF sequence **************//
