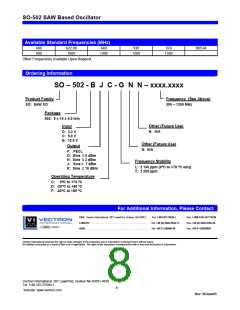

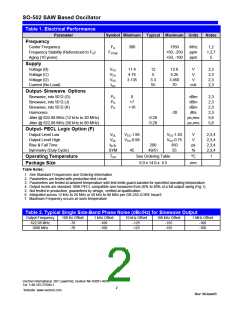

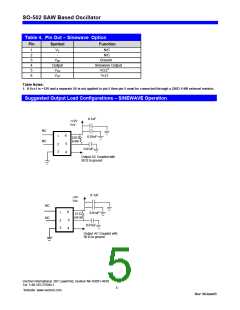

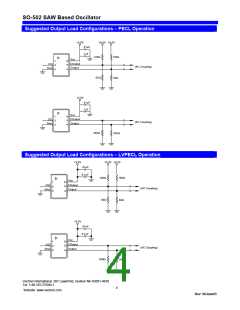

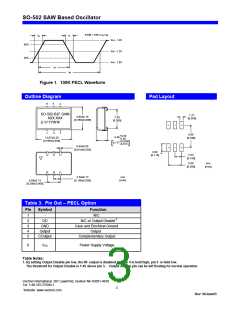

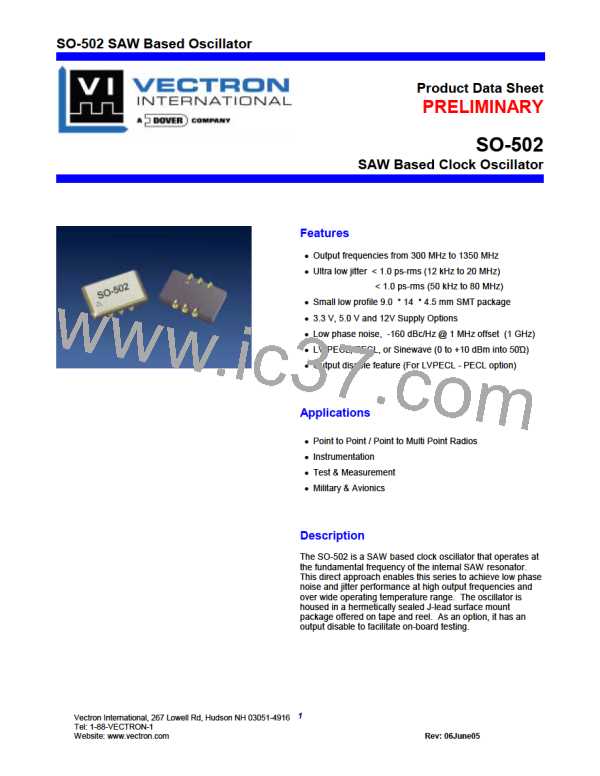

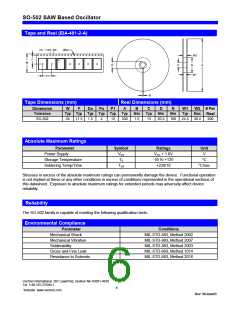

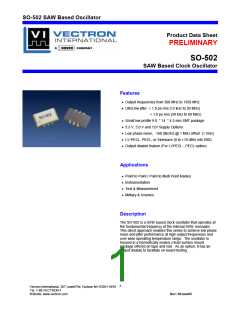

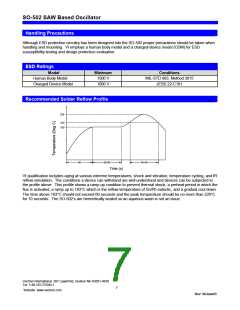

SO-502 SAW Based Oscillator
Available Standard Frequencies (MHz)
480
990
622.08
1000
640
938
1200
970
1330
983.04
1090
Other Frequencies Available Upon Request.
Ordering Information
SO – 502 - B J C - G N N – xxxx.xxxx
Product Family
SO: SAW XO
Frequency (See Above)
300 – 1350 MHz
Package
502: 9 x 14 x 4.5 mm
Other (Future Use)
Input
D: 3.3 V
C: 5.0 V
B: 12.0 V
N: N/A
Other (Future Use)
N: N/A
Output
F: PECL
G: Sine ≥ 0 dBm
H: Sine ≥ 3 dBm
J: Sine ≥ 7 dBm
K: Sine ≥ 10 dBm
Frequency Stability
L: ± 130 ppm (0°C to +70 °C only)
T: ± 200 ppm
Operating Temperature
C: 0°C to +70 °C
D: -20°C to +85 °C
For Additional Information, Please Contact:
USA: Vectron International, 267 Lowell Rd, Hudson, NH 03051 . . . . Tel: 1-88-VECTRON-1
Fax: 1-888-FAX-VECTRON
Fax: +49 (0) 3328-4784-30
Fax: +86-21-28909999
EUROPE: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Tel: +49 (0) 3328-4784-17
ASIA: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Tel: +86-21-28909740
Vectron International reserves the right to make changes to the product(s) and or information contained herein without notice.
No liability is assumed as a result of their use or application. No rights under any patent accompany the sale of any such product(s) or information.
Vectron International, 267 Lowell Rd, Hudson NH 03051-4916
Tel: 1-88-VECTRON-1
Website: www.vectron.com
8
Rev: 06June05
