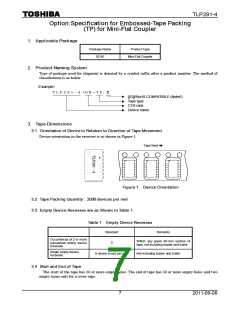

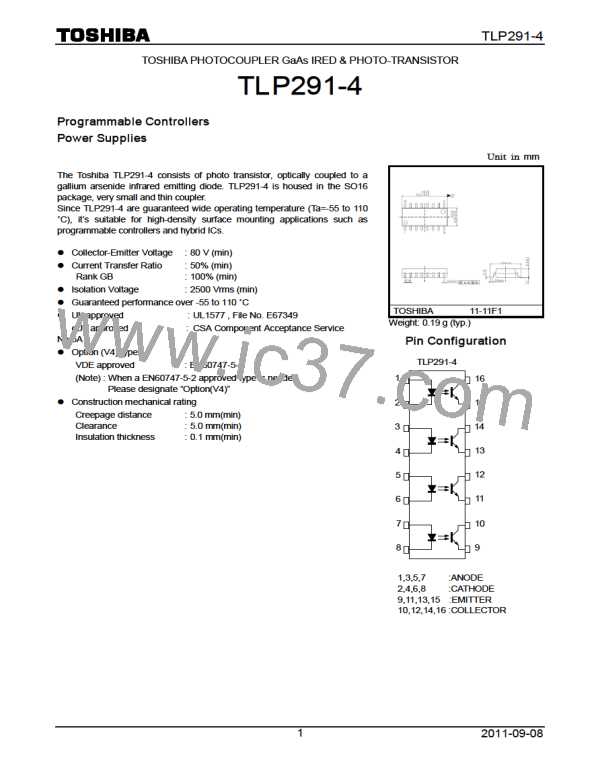

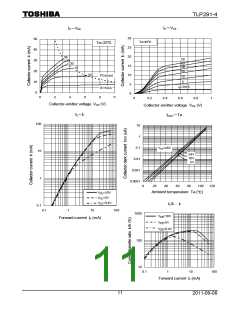

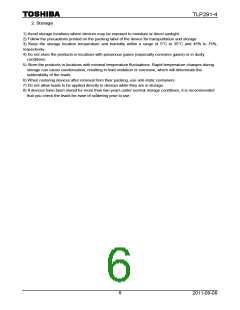

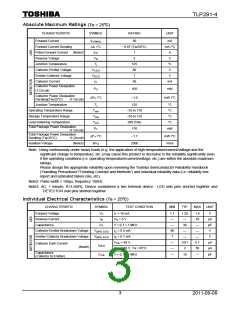

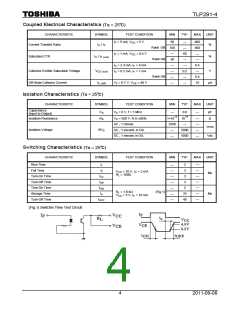

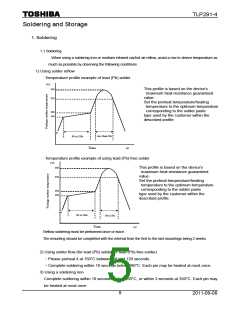

TLP291-4
Option:Specification for Embossed-Tape Packing
(TP) for Mini-Flat Coupler
1. Applicable Package
Package Name
SO16
Product Type
Mini-Flat Coupler
2. Product Naming System
Type of package used for shipment is denoted by a symbol suffix after a product number. The method of
classification is as below.
（Example）
ＴＬＰ２９１－４（ＧＢ－ＴＰ，E
[[G]]/RoHS COMPATIBLE (Note6)
Tape type
CTR rank
Device name

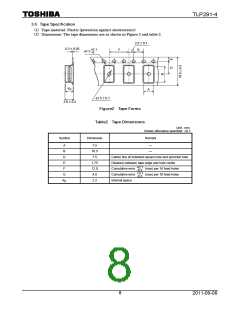

3. Tape Dimensions
3.1 Orientation of Device in Relation to Direction of Tape Movement
Device orientation in the recesses is as shown in Figure 1.
Tape feed
Figure１ Device Orientation

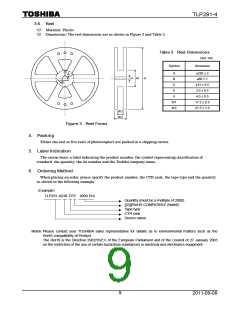

3.2 Tape Packing Quantity：2000 devices per reel
3.3 Empty Device Recesses are as Shown in Table 1.
Table１ Empty Device Recesses
Standard
Remarks
Occurrences of 2 or more
successive empty device
recesses
Within any given 40-mm section of
tape, not including leader and trailer
0
Single empty device
recesses
6 device (max) per reel
Not including leader and trailer
3.4 Start and End of Tape
The start of the tape has 50 or more empty holes. The end of tape has 50 or more empty holes and two
empty turns only for a cover tape.
7
2011-09-08
