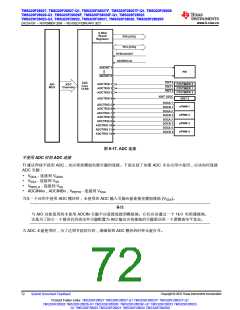

Ron
3.4 kW
Switch
Rs
ADCIN
Cp
Ch
Source
Signal
ac
5 pF
1.6 pF
28x DSP
Typical Values of the Input Circuit Components:
Switch Resistance (Ron): 3.4 kW
Sampling Capacitor (Ch): 1.6 pF
Parasitic Capacitance (Cp): 5 pF
Source Resistance (Rs): 50 W
图9-20. ADC 输入阻抗模型
