Functional Overview

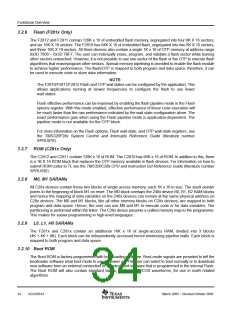

Table 3−1. Addresses of Flash Sectors in F2812 and F2811
ADDRESS RANGE
PROGRAM AND DATA SPACE
0x3D 8000
0x3D 9FFF
Sector J, 8K x 16
0x3D A000
0x3D BFFF
Sector I, 8K x 16
Sector H, 16K x 16
Sector G, 16K x 16
Sector F, 16K x 16
Sector E, 16K x 16
Sector D, 16K x 16
Sector C, 16K x 16
0x3D C000
0x3D FFFF
0x3E 0000
0x3E 3FFF
0x3E 4000
0x3E 7FFF
0x3E 8000
0x3E BFFF
0x3E C000
0x3E FFFF
0x3F 0000
0x3F 3FFF
0x3F 4000
0x3F 5FFF
Sector B, 8K x 16
Sector A, 8K x 16
0x3F 6000
0x3F 7F80
0x3F 7FF5
Program to 0x0000 when using the
Code Security Module
0x3F 7FF6
0x3F 7FF7
Boot-to-Flash (or ROM) Entry Point
(program branch instruction here)
0x3F 7FF8
0x3F 7FFF
Security Password (128-Bit)
(Do not program to all zeros)
Table 3−2. Addresses of Flash Sectors in F2810
ADDRESS RANGE
PROGRAM AND DATA SPACE
0x3E 8000
0x3E BFFF
Sector E, 16K x 16
0x3E C000
0x3E FFFF
Sector D, 16K x 16
Sector C, 16K x 16
0x3F 0000
0x3F 3FFF
0x3F 4000
0x3F 5FFF
Sector B, 8K x 16
Sector A, 8K x 16
0x3F 6000
0x3F 7F80
0x3F 7FF5
Program to 0x0000 when using the
Code Security Module
0x3F 7FF6
0x3F 7FF7
Boot-to-Flash (or ROM) Entry Point
(program branch instruction here)
0x3F 7FF8
0x3F 7FFF
Security Password (128-Bit)
(Do not program to all zeros)
