PCM9211
SBAS495 –JUNE 2010
www.ti.com

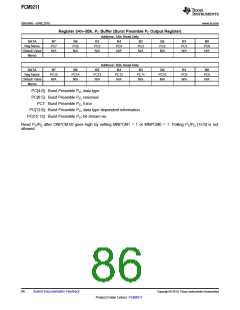

Register 35h, RECOUT0 Output Biphase Source Settings
(Address: 35h, Write and Read)
DATA
Reg Name
Default Value
Memo
B7
RSV
0
B6
RSV
0
B5
RSV
0
B4
MPO0MUT
0
B3
RO0SEL3
0
B2
RO0SEL2
0
B1
RO0SEL1
1
B0
RO0SEL0
0
RO0SEL0[3:0]: RECOUT0 Output Biphase Source Select
0000: RXIN0
0001: RXIN1
0010: RXIN2 (default)
0011: RXIN3
0100: RXIN4
0101: RXIN5
0110: RXIN6
0111: RXIN7
1000: RXIN8
1001: RXIN9
1010: RXIN10
1011: RXIN11
1100: Reserved
1101: Reserved
1110: Reserved
1111: TXOUT (internal DIT output)
MPO0MUT: MPO0 Mute Control
0: Output (default)
1: MUTE (Logic low level)
