AM3359, AM3358, AM3357
AM3356, AM3354, AM3352
www.ti.com
SPRS717F –OCTOBER 2011–REVISED APRIL 2013

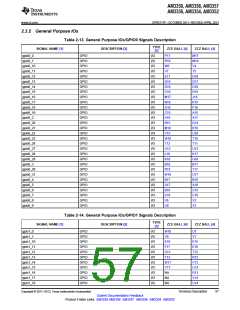

2.3.3.1 eCAP
Table 2-18. eCAP/eCAP0 Signals Description
TYPE
[3]
SIGNAL NAME [1]
eCAP0_in_PWM0_out
DESCRIPTION [2]
ZCE BALL [4]
E18
ZCZ BALL [4]
C18
Enhanced Capture 0 input or Auxiliary PWM0
output
I/O
Table 2-19. eCAP/eCAP1 Signals Description
TYPE
SIGNAL NAME [1]
eCAP1_in_PWM1_out
DESCRIPTION [2]
[3]
ZCE BALL [4]
ZCZ BALL [4]
Enhanced Capture 1 input or Auxiliary PWM1
output
I/O
B16, B19, F17
C15, C16, E16
Table 2-20. eCAP/eCAP2 Signals Description
TYPE
SIGNAL NAME [1]
eCAP2_in_PWM2_out
DESCRIPTION [2]
[3]
ZCE BALL [4]
ZCZ BALL [4]
Enhanced Capture 2 input or Auxiliary PWM2
output
I/O
C18, E19
C12, C17, E15
