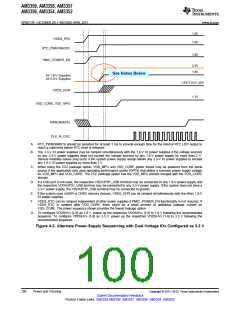

If none of the VDDSHVx [1-6] power supplies are configured as 3.3 V, the VDDS power supply may ramp
down along with the VDDSHVx [1-6] supplies or after all the VDDSHVx [1-6] supplies have ramped down.
It is recommended to maintain VDDS ≥1.5V as all the other supplies fully ramp down to minimize in-rush
currents.
4.1.3 VDD_MPU_MON Connections
Figure 4-6 shows the VDD_MPU_MON connectivity. VDD_MPU_MON connectivity is available only on the
ZCZ package.
VDD_MPU
Power
Management
IC
AM335x Device
VDD_MPU_MON
Vfeedback
Connection for VDD_MPU_MON if voltage monitoring is used
VDD_MPU
Power
Source
VDD_MPU_MON
AM335x Device
Preferred connection for VDD_MPU_MON if voltage monitoring is NOT used
VDD_MPU
Power
Source
AM335x Device
VDD_MPU_MON
N/C
Optional connection for VDD_MPU_MON if voltage monitoring is NOT used
Figure 4-6. VDD_MPU_MON Connectivity
