P R E L I M I N A R Y

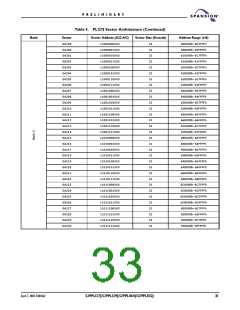

Table 5. PL127J Sector Architecture (Continued)
Bank
Sector
SA39
SA40
SA41
SA42
SA43
SA44
SA45
SA46
SA47
SA48
SA49
SA50
SA51
SA52
SA53
SA54
SA55
SA56
SA57
SA58
SA59
SA60
SA61
SA62
SA63
SA64
SA65
SA66
SA67
SA68
SA69
SA70
SA71
SA72
SA73
SA74
SA75
SA76
SA77
SA78
Sector Address (A22-A12)
00100000XXX
00100001XXX
00100010XXX
00100011XXX
00100100XXX
00100101XXX
00100110XXX
00100111XXX
00101000XXX
00101001XXX
00101010XXX
00101011XXX
00101100XXX
00101101XXX
00101110XXX
00101111XXX
00110000XXX
00110001XXX
00110010XXX
00110011XXX
00110100XXX
00110101XXX
00110110XXX
00110111XXX
00111000XXX
00111001XXX
00111010XXX
00111011XXX
00111100XXX
00111101XXX
00111110XXX
00111111XXX
01000000XXX
01000001XXX
01000010XXX
01000011XXX
01000100XXX
01000101XXX
01000110XXX
01000111XXX
Sector Size (Kwords)
Address Range (x16)
100000h–107FFFh
108000h–10FFFFh
110000h–117FFFh
118000h–11FFFFh
120000h–127FFFh
128000h–12FFFFh
130000h–137FFFh
138000h–13FFFFh
140000h–147FFFh
148000h–14FFFFh
150000h–157FFFh
158000h–15FFFFh
160000h–167FFFh
168000h–16FFFFh
170000h–177FFFh
178000h–17FFFFh
180000h–187FFFh
188000h–18FFFFh
190000h–197FFFh
198000h–19FFFFh
1A0000h–1A7FFFh
1A8000h–1AFFFFh
1B0000h–1B7FFFh
1B8000h–1BFFFFh
1C0000h–1C7FFFh
1C8000h–1CFFFFh
1D0000h–1D7FFFh
1D8000h–1DFFFFh
1E0000h–1E7FFFh
1E8000h–1EFFFFh
1F0000h–1F7FFFh
1F8000h–1FFFFFh
200000h–207FFFh
208000h–20FFFFh
210000h–217FFFh
218000h–21FFFFh
220000h–227FFFh
228000h–22FFFFh
230000h–237FFFh
238000h–23FFFFh
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
April 7, 2005 31107A62
S29PL127J/S29PL129J/S29PL064J/S29PL032J
27
