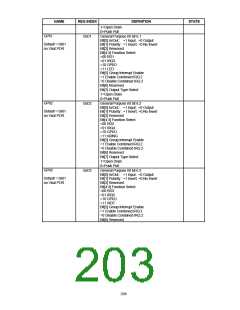

NAME
REG INDEX
DEFINITION
STATE
Default = 0x01
on Vbat POR
Bit[1] Polarity : =1 Invert, =0 No Invert
Bit[2] Group Interrupt Enable
=1 Enable Combined IRQ 1
=0 Disable Combined IRQ 1
Bit[3] Function Select
=1 LED
=0 GPI/O
Bits[6:4] Reserved
Bit[7] Output Type Select
1=Open Drain
0=Push Pull Bit
GP14
0xE4
General Purpose I/0 bit 1.4
Bit[0] In/Out : =1 Input, =0 Output
Bit[1] Polarity : =1 Invert, =0 No Invert
Bit[2] Group Interrupt Enable
=1 Enable Combined IRQ 1
=0 Disable Combined IRQ 1
Bit[3] Function Select
=1 IRRX2
C
Default = 0x01
on Vbat POR
=0 GPI/O
Bits[6:4] Reserved
Bit[7] Output Type Select
1=Open Drain
0=Push Pull Bit
GP15
0xE5
General Purpose I/0 bit 1.5
Bit[0] In/Out : =1 Input, =0 Output
Bit[1] Polarity : =1 Invert, =0 No Invert
Bit[2] Group Interrupt Enable
=1 Enable Combined IRQ 1
=0 Disable Combined IRQ 1
Bit[3] Function Select
=1 IRTX2
C
Default = 0x00
on Vbat POR
=0 GPI/O
Bits[6:4] Reserved
Bit[7] Output Type Select
1=Open Drain
0=Push Pull
GP16
0xE6
General Purpose I/0 bit 1.6
Bit[0] In/Out : =1 Input, =0 Output
Bit[1] Polarity : =1 Invert, =0 No Invert
Bit[2] Group Interrupt Enable
=1 Enable Combined IRQ 1
=0 Disable Combined IRQ 1
Bit[3] Function Select
C
Default = 0x01
on Vbat POR
=1 nMTR1
=0 GPI/O
Bits[6:4] Reserved
203
