9.1.50 VopOfsetInc: Vop Increase 1 (C1H)
Command
A0
/RD /WR
D7
D6
D5
D4
D3
D2
D1
D0
Hex
(C1h)
VopOfsetInc
0
1
0
1
1
0
0
0
0
0
1
Description
With the VopOfsetInc and VopOfsetDec command the VLCD voltage and therewith the contrast
of the LCD can be adjusted. This command increases the value of Vop offset register by 1.
If you set the electronic control value to 1111111, the control value is set to 0000000 after this
command has been executed.
Restriction
Register
Status
Availability
Yes
Availability
Normal Mode On, Idle Mode Off, Sleep Out
Normal Mode On, Idle Mode On, Sleep Out
Partial Mode On, Idle Mode Off, Sleep Out
Partial Mode On, Idle Mode On, Sleep Out
Sleep In
Yes
Yes
Yes
Yes
Default
Status
Default Value
Power On Sequence
--
--
--
S/W Reset
H/W Reset

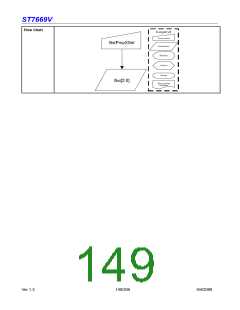

Flow Chart
