ST7669V
9.1.32 IDMOFF: Idle Mode Off (38H)
A0
RD
WR
D7
D6
D5
D4
D3
D2
D1
D0
HEX
Command
Parameter
0
1
0
0
0
1
1
1
0
0
0
38H
No Parameter
Description
This command is used to recover from Idle mode on.
There will be no abnormal visible effect on the display mode change transition.
In the idle off mode,
1. LCD can display maximum 262,144 colors.
2. Normal frame frequency is applied.
Restriction
Register
This command has no effect when module is already in idle off mode.
Availability
Status
Availability
Yes
Normal Mode On, Idle Mode Off, Sleep Out
Normal Mode On, Idle Mode On, Sleep Out
Partial Mode On, Idle Mode Off, Sleep Out
Partial Mode On, Idle Mode On, Sleep Out
Sleep In
Yes
Yes
Yes
Yes
Default
Status
Power On Sequence
S/W Reset
Default Value
Idle Off Mode
Idle Off Mode
Idle Off Mode
H/W Reset

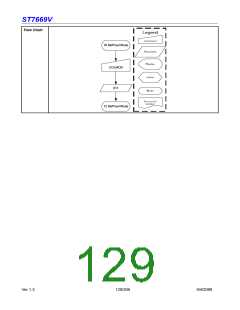

Flow Chart
Ver 1.3
125/208
6/4/2008
