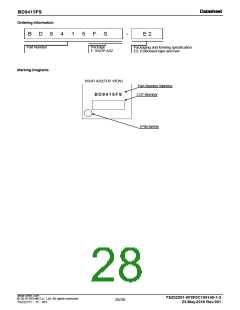

BD9415FS
3.5.4 Over Duty Protection
PWM=100%
PWM1
(35%)
(30%)
dutyH > (35%)
PWM2
PWM3
PWM4
(35%)
(35%)
ILED1
(35%)
(30%)
ILED2
ILED3
ILED4
(*1)
(*2) (*3)
(*4)
(*5)
(*6)
Figure 27. Over Duty Protection
ODP=35% setup
(*1) …PWM < 35% : Turn on in relevant CH of same time PWM_DutyH.
(*2) …PWM > 35% : An LED of relevant CH is turn off by PWM_DutyH=35%.
(*3) …PWM=H signal beyond 35% is changed, and that doesn't react to IC in particular.
(*4) …PWM > 35% : An LED of relevant CH is turn off by PWM_DutyH=35%.
(*5) …ODP Function= ON : When a PWM signal is equivalent to 100%, LED=OFF continues after 35 %.
(*6) … When the next PWM=H signal is input, an LED is also turn on at the same time.
