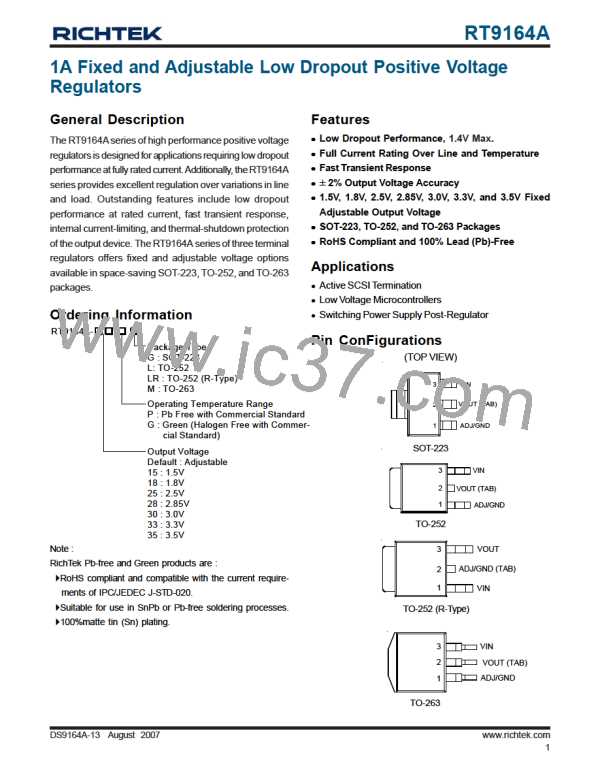

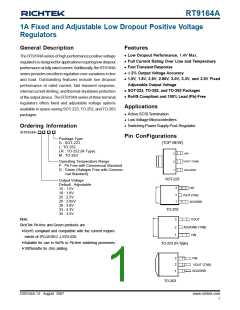

RT9164A
1A Fixed and Adjustable Low Dropout Positive Voltage
Regulators
General Description
Features
z Low Dropout Performance, 1.4V Max.
z Full Current Rating Over Line and Temperature
z Fast Transient Response
The RT9164Aseries of high performance positive voltage
regulators is designed for applications requiring low dropout
performance at fully rated current.Additionally, the RT9164A
series provides excellent regulation over variations in line
and load. Outstanding features include low dropout
performance at rated current, fast transient response,
internal current-limiting, and thermal-shutdown protection
of the output device. The RT9164A series of three terminal
regulators offers fixed and adjustable voltage options
available in space-saving SOT-223, TO-252, and TO-263
packages.
z
± 2% Output Voltage Accuracy
z 1.5V, 1.8V, 2.5V, 2.85V, 3.0V, 3.3V, and 3.5V Fixed
Adjustable Output Voltage
z SOT-223, TO-252, and TO-263 Packages
z RoHS Compliant and 100% Lead (Pb)-Free
Applications
z Active SCSI Termination
z Low Voltage Microcontrollers
z Switching Power Supply Post-Regulator
Ordering Information
RT9164A-
Pin ConFigurations
Package Type
G : SOT-223
L: TO-252
(TOP VIEW)
LR : TO-252 (R-Type)
M : TO-263
3
2
1
VIN
VOUT (TAB)
Operating Temperature Range
P : Pb Free with Commercial Standard
G : Green (Halogen Free with Commer-
cial Standard)
ADJ/GND
SOT-223
Output Voltage
Default : Adjustable
15 : 1.5V
3
VIN
18 : 1.8V
25 : 2.5V
28 : 2.85V
30 : 3.0V
2
1
VOUT (TAB)
ADJ/GND
TO-252
3
33 : 3.3V
35 : 3.5V
VOUT
ADJ/GND (TAB)
VIN
Note :
RichTek Pb-free and Green products are :
`RoHS compliant and compatible with the current require-
ments of IPC/JEDEC J-STD-020.
2
1
`Suitable for use in SnPb or Pb-free soldering processes.
`100%matte tin (Sn) plating.
TO-252 (R-Type)
VIN
3
2
VOUT (TAB)
ADJ/GND
1
TO-263
DS9164A-13 August 2007
www.richtek.com
1
