MC10EL12, MC100EL12
5.0 V ECL Low Impedance
Driver
The MC10EL/100EL12 is a low impedance drive buffer. With two
pairs of OR/NOR outputs the device is ideally suited for high drive
applications such as memory addressing. The device is a function
equivalent to the E112 device with higher performance capabilities.
With propagation delays significantly faster than the E112, the EL12 is
ideally suited for those applications which require the ultimate in
AC performance.
The 100 Series contains temperature compensation.
Features
http://onsemi.com
MARKING
DIAGRAMS*
8
1
SOIC−8
D SUFFIX
CASE 751
8
HEL12
ALYW
G
1
1
8
KEL12
ALYW
G
290 ps Propagation Delay
Dual Outputs for 25
W
Drive Applications
ESD Protection: Human Body Model; > 1.0 kV
Machine Model; > 100 V
PECL Mode Operating Range: V
CC
= 4.2 V to 5.7 V with V
EE
= 0 V
NECL Mode Operating Range: V
CC
= 0 V with V
EE
=
−4.2
V to
−5.7
V
Internal Input Pulldown Resistors
Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test
Moisture Sensitivity Level 1
For Additional Information, see Application Note AND8003/D
Flammability Rating: UL 94 V−0 @ 0.125 in,
Oxygen Index: 28 to 34
Transistor Count = 44 devices
Pb−Free Packages are Available
8
1
TSSOP−8
DT SUFFIX
CASE 948R
8
HL12
ALYWG
G
8
KL12
ALYWG
G
1
1
4R M
G
G
DFN8
MN SUFFIX
CASE 506AA
1
4
1
Q
a
1
8
V
CC
Q
b
2
7
D
0
H
K
4R
2F
A
MC10
MC100
MC10
MC100
= Assembly Location
L
Y
W
M
G
= Wafer Lot
= Year
= Work Week
= Date Code
= Pb−Free Package
(Note: Microdot may be in either location)
Q
a
3
6
D
1
*For additional marking information, refer to
Application Note AND8002/D.
Q
b
4
5
V
EE
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 5 of this data sheet.

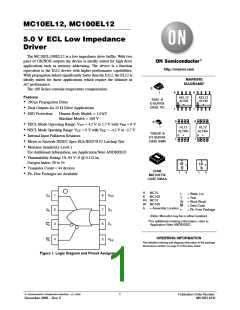

Figure 1. Logic Diagram and Pinout Assignment
©
