LPC546xx
NXP Semiconductors
32-bit ARM Cortex-M4 microcontroller

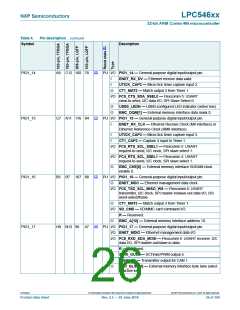

Table 4.
Symbol
Pin description …continued
Description
[2]
PIO0_30
A2 A2 200 95
PU I/O PIO0_30 — General-purpose digital input/output pin.
Remark: In ISP mode, this pin is set to the Flexcomm 0
USART TXD function.
I/O FC0_TXD_SCL_MISO — Flexcomm 0: USART transmitter,
I2C clock, SPI master-in/slave-out data.
R — Reserved.
O
O
O
CT0_MAT0 — Match output 0 from Timer 0.
SCT0_OUT9 — SCTimer/PWM output 9.
TRACEDATA[1] — Trace data bit 1.
[4]
[4]
[2]
PIO0_31/
ADC0_5
K3 M5 55
28
PU I/O; PIO0_31/ADC0_5 — General-purpose digital input/output pin.
AI ADC input channel 5 if the DIGIMODE bit is set to 0 in the
IOCON register for this pin.
I/O FC0_CTS_SDA_SSEL0 — Flexcomm 0: USART
clear-to-send, I2C data I/O, SPI Slave Select 0.
I/O SD_D[2] — SD/MMC data 2.
O
O
O
CT0_MAT1 — Match output 1 from Timer 0.
SCT0_OUT3 — SCTimer/PWM output 3.
TRACEDATA[0] — Trace data bit 0.
PIO1_0/
ADC0_6
J3
N3 56
29
PU I/O; PIO1_0/ADC0_6 — General-purpose digital input/output pin.
AI ADC input channel 6 if the DIGIMODE bit is set to 0 in the
IOCON register for this pin.
I/O FC0_RTS_SCL_SSEL1 — Flexcomm 0: USART
request-to-send, I2C clock, SPI slave select 1.
I/O SD_D[3] — SD/MMC data 3.
I
CT0_CAP2 — Capture 2 input to Timer 0.
SCT0_GPI4 — Pin input 4 to SCTimer/PWM.
TRACECLK — Trace clock.
I
O
PIO1_1
J10 K12 109 55
PU I/O PIO1_1/ — General-purpose digital input/output pin.
I/O FC3_RXD_SDA_MOSI — Flexcomm 3: USART receiver, I2C
data I/O, SPI master-out/slave-in data.
R — Reserved.
I
I
CT0_CAP3 — Capture 3 input to Timer 0.
SCT0_GPI5 — Pin input 5 to SCTimer/PWM.
R — Reserved.
R — Reserved.
I
USB1_OVERCURRENTN — USB1 bus overcurrent indicator
(active low).
