APPENDIX C. FLOWCHARTS AND PSEUDO CODES

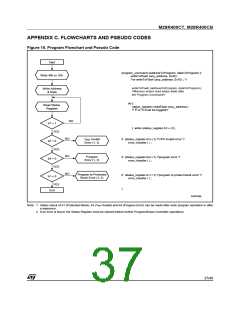

Figure 15. Program Flowchart and Pseudo Code
Start
program_command (addressToProgram, dataToProgram) {:
writeToFlash (any_address, 0x40) ;
Write 40h or 10h
/*or writeToFlash (any_address, 0x10) ; */
writeToFlash (addressToProgram, dataToProgram) ;
/*Memory enters read status state after
the Program Command*/
Write Address
& Data
do {
Read Status
Register
status_register=readFlash (any_address) ;
/* E or G must be toggled*/
NO
b7 = 1
YES
} while (status_register.b7== 0) ;
NO
V
Invalid
if (status_register.b3==1) /*VPP invalid error */
error_handler ( ) ;
PP
b3 = 0
YES
Error (1, 2)
NO
NO
Program
Error (1, 2)
if (status_register.b4==1) /*program error */
error_handler ( ) ;
b4 = 0
YES
Program to Protected
Block Error (1, 2)
if (status_register.b1==1) /*program to protect block error */
error_handler ( ) ;
b1 = 0
YES
End
}
AI03538b
Note: 1. Status check of b1 (Protected Block), b3 (V Invalid) and b4 (Program Error) can be made after each program operation or after
PP
a sequence.
2. If an error is found, the Status Register must be cleared before further Program/Erase Controller operations.
