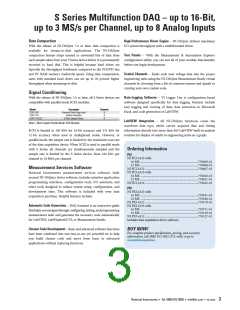

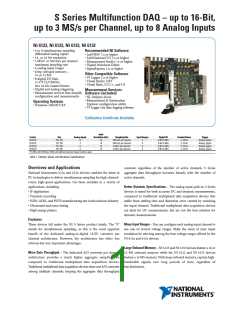

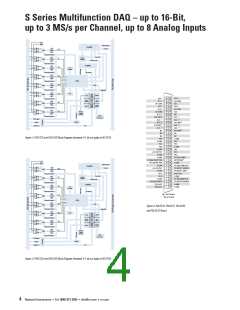

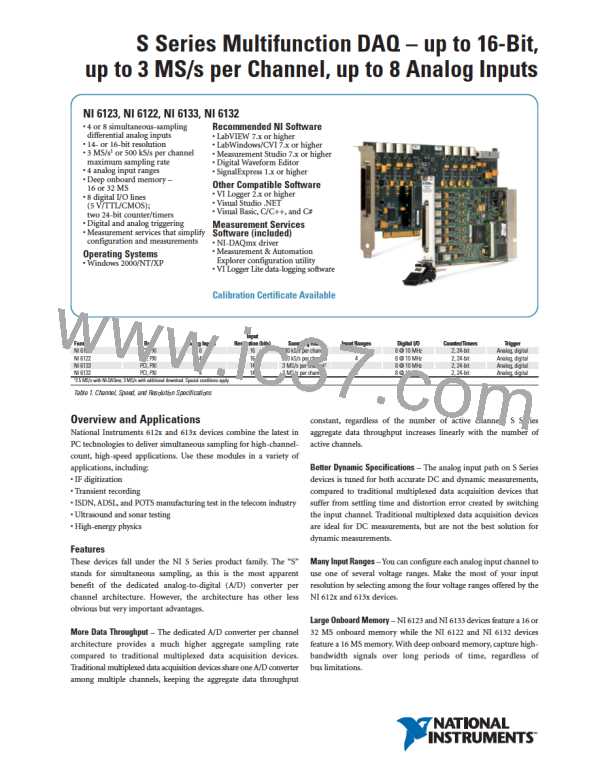

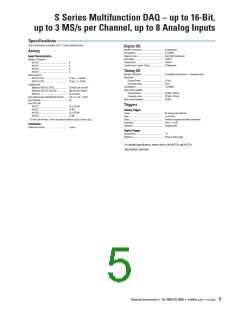

S Series Multifunction DAQ – up to 16-Bit,
up to 3 MS/s per Channel, up to 8 Analog Inputs
Data Compaction
With the release of NI-DAQmx 7.4 or later, data compaction is
available for stream-to-disk applications. The NI-DAQmx
compaction feature strips unused or unwanted bits of data from
each sample taken from your S Series device before it is permanently
recorded to hard disk. This is helpful because hard drives are
typically the throughput bottleneck compared to the PCI/PXI bus
and PC RAM memory read/write speed. Using data compression,
users with standard hard drives can see up to 20 percent higher
throughput when streaming-to-disk.
High-Performance Driver Engine
– NI-DAQmx delivers maximum
I/O system throughput with a multithreaded driver.
Test Panels
– With the Measurement & Automation Explorer
configuration utility, you can test all of your module functionality
before you begin development.
Scaled Channels
– Easily scale your voltage data into the proper
engineering units using the NI-DAQmx Measurement Ready virtual
channels by choosing from a list of common sensors and signals or
creating your own custom scale.
Data-Logging Software –
VI Logger Lite is configuration-based
software designed specifically for data logging. Features include
easy logging and viewing of data, data extraction to Microsoft
Excel, and code generation in LabVIEW.
LabVIEW Integration
– All NI-DAQmx functions create the
waveform data type, which carries acquired data and timing
information directly into more than 400 LabVIEW built-in analysis
routines for display of results in engineering units on a graph.
Signal Conditioning
With the release of NI-DAQmx 7.4 or later, all S Series devices are
compatible with parallel mode SCXI modules.
Model
SCXI-1520
SCXI-1125
SCXI-1141/2/3
Description
Universal Strain Gage Input
Isolation Amplifier
8-Pole Lowpass Filters
Channels
8
8
8
Table 2. Most Popular Parallel-Mode SCXI Modules
SCXI is limited to 100 kS/s for 16-bit accuracy and 333 kS/s for
12-bit accuracy when used in multiplexed mode. However, in
parallel mode, the sample rate is limited by the maximum scan rate
of the data acquisition device. When SCXI is used in parallel mode
with S Series, all channels are simultaneously sampled and the
sample rate is limited by the S Series device, from 250 kS/s per
channel to 10 MS/s per channel.

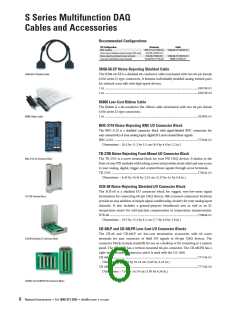

Ordering Information
PCI
Measurement Services Software
National Instruments measurement services software, built
around NI-DAQmx driver software, includes intuitive application
programming interfaces, configuration tools, I/O assistants, and
other tools designed to reduce system setup, configuration, and
development time. This software is included with your data
acquisition purchase. Helpful features include:
Automatic Code Generation
– DAQ Assistant is an interactive guide
that helps you navigate through configuring, testing, and programming
measurement tasks and generates the necessary code automatically
for LabVIEW, LabWindows/CVI, or Measurement Studio.
Cleaner Code Development
– Basic and advanced software functions
have been combined into one easy-to-use yet powerful set to help
you build cleaner code and move from basic to advanced
applications without replacing functions.
NI PCI-6123 with
16 MS ........................................................................779409-01
32 MS ........................................................................779408-01
NI PCI-6122 ..................................................................779407-01
NI PCI-6133 with
16 MS ........................................................................779420-01
32 MS ........................................................................779421-01
NI PCI-6132 ..................................................................779422-01
PXI
NI PXI-6123 with
16 MS ........................................................................779181-01
32 MS ........................................................................779180-01
NI PXI-6122 ..................................................................779179-01
NI PXI-6133 with
16 MS ........................................................................778771-01
32 MS ........................................................................779129-01
NI PXI-6132 ..................................................................779127-01
Includes data acquisition driver software.
BUY NOW!
For complete product specifications, pricing, and accessory
information, call (800) 813 3693 (U.S. only) or go to
ni.com/dataacquisition
.
