AEC-Q200 Compliant Chip Multilayer Ceramic Capacitors for Infotainment
GRT188R72A332KE01_(1608M(0603), X7R(EIA), 3300pF, DC 100V)
_:Package
Reference Sheet
Product specifications in this catalog are as of Nov.23,2022, and are subject to change or obsolescence without notice.
Please consult the approval sheet before ordering. Please read rating and !Cautions first.
■ Scope
This product specification is applied to Chip Multilayer Ceramic Capacitors used for Car Multimedia, Car Interior, Car Comfort application and General Electronic equipment.
Please contact us when using this product for any other applications than described in the above.
Do not use these products in applications critical to passenger safety and car driving function (e.g. ABS, AIRBAG, etc.).
■ MURATA Part No. System
(Ex.)
GRT
18
②Dimension
(L×W)
8
③Dimension
(T)
R7
2A
332
K
E01
D
①Series
④Temperature
Characteristics
⑤Rated
Voltage
⑥Capacitance
⑦Capacitance
Tolerance
⑧Individual
Specification
⑨Package
■ Type & Dimension
image:Dimension
1608M(0603)
② W
0.8+/-0.1
(in mm)
Size Code：
② L
e
g
③ T
0.8+/-0.1
1.6+/-0.1
0.2 to 0.5
0.5 min.
■ Rated Value
④Temperature Characteristics [R7]
(Public STD Code：[X7R(EIA)])
⑦
⑤Rated
Voltage
⑥
Mounting
Method
Operating Temp. Range
Capacitance
Tolerance
Capacitance
Temp. coeff. or Cap. Change
-15 to 15 %
Temp. Range
Ref.Temp.
-55 to 125℃
25℃
DC 100V
3300pF
+/-10%
-55 to 125℃
Flow, Reflow
⑧Individual Specification : This denotes Murata control code.

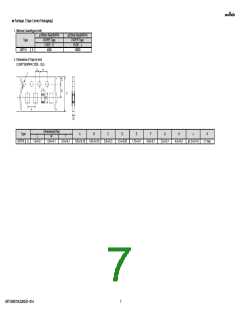

■ Package
⑨Package
Packaging
φ180mm Reel PAPER Tape W8P4
φ330mm Reel PAPER Tape W8P4
Standard Packing Quantity
4000 pcs./Reel
D
J
10000 pcs./Reel
GRT188R72A332KE01-01A
1
MURATA [ muRata ]
