High Voltage Ceramic Capacitors

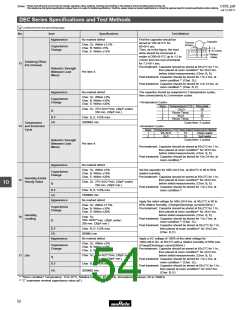

DEC Series (Class 1, 2/DC6.3kV)
<Fig. 1>
T max.
<Fig. 2>
T max.
D max.
■ Features
Coated with flame-retardant epoxy resin
(equivalent to UL94V-0 standard).
Please contact us when a halogen-free product*
is necessary.
e
* Cl=900ppm max., Br=900ppm max. and
Cl+Br=1500ppm max.
F±1.0
ø d
(in mm)
Lead Code Coating Extension e
ø d
Style
■ Applications
[Bulk]
Up to the end of crimp 0.6±0.05 Fig. 1
3.0 max. 0.6±0.05 Fig. 2
A3
C4
Vertical Crimp Long (Fig. 1)
Straight Long (Fig. 2)
1. Ideal for use as the ballast in backlighting
inverters for liquid crystal displays (SL Char.).
2. Ideal for use on high voltage circuits such as
Cockcroft circuits (B Char.).
Do not use these products in any automotive
power train or safety equipment including battery
chargers for electric vehicles and plug-in hybrids.
Only Murata products clearly stipulated as
"for Automotive use" on its catalog can be used
for automobile applications such as power train and
safety equipment.
■ Marking
Temp. Char.
SL
B
E
Nominal Body Diameter
10J
6KV
ø7mm
10
47J
6KV
66
331K
6KV
66
ø8-9mm
B
151J
6KV
66
222Z
6KV
66
102K
6KV
66
ø10-15mm
Marked with code for char. B (omitted for nominal body diameter ø9mm and under)
Under 100pF: Actual value, 100pF and over: Marked with 3 figures
Marked with code
Temperature Characteristics
Nominal Capacitance
Capacitance Tolerance
Rated Voltage
Marked with code (for DC6.3kV, marked with 6KV)
Marked with
(omitted for nominal body diameter ø9mm and under)
Manufacturer's Identification
Manufactured Date Code
Abbreviation (omitted for nominal body diameter ø7mm)
49
