Type KY/KH/KX Specifications and Test Methods
Continued from the preceding page.
No.
Item
Specifications
Test Method
Appearance
No marked defect
Within ±20%
Impulse Voltage
Each individual capacitor should be subjected to a 5kV (Type
KX: 8kV) impulses for three times. Then the capacitors are
applied to life test.
Capacitance
Change
I.R.
3000Mmin.
100 (%)
Front time (T1) =1.2µs=1.67T
90
Time to half-value (T2) =50µs
50
30
0
t
T
T
1
14 Life
T
2
4
Apply a voltage from Table 4 for 1000 hrs. at 125+2/-0°C, and
relative humidity of 50% max.
Dielectric
Strength
Per Item 6
<Table 4>
Applied Voltage
AC425V(r.m.s.), except that once each hour the voltage
is increased to AC1000V(r.m.s.) for 0.1 sec.
Post-treatment:
Capacitor should be stored for 1 to 2 hrs. at room condition.*2
The capacitor should be subjected to applied flame for 15 sec.
and then removed for 15 sec. until 5 cycles are completed.
The capacitor flame extinguishes as follows.
Capacitor
Flame
Cycle
1 to 4
5
Time (sec.)
30 max.
60 max.
15 Flame Test
Gas Burner: Inside Dia. 9.5
(in mm)
As shown in the figure at right, fix the body
of the capacitor and apply a tensile weight
gradually to each lead wire in the radial
Tensile
direction of the capacitor up to 10N and keep
it for 10±1 sec.
Robustness
16 of
W
Lead wire should not be cut off. Capacitor should
not be broken.
Terminations
Each lead wire should be subjected to 5N of weight and bent
90° at the point of egress, in one direction, then returned to its
original position and bent 90° in the opposite direction at the
rate of one bend in 2 to 3 sec.
Bending
The capacitor should be individually wrapped in at least one but
not more than two complete layers of cheesecloth. The
capacitor should be subjected to 20 discharges. The interval
between successive discharges should be 5 sec. The UAC
should be maintained for 2 min. after the last discharge.
R
F
L1
L2
S1
C1
C2
L3
C3
L4
Cx
Ct
Ut
S2 UAC
Tr
Oscilloscope
17 Active Flammability
The cheesecloth should not be on fire.
C1,2 : 1µF±10%
C3
: 0.033µF±5% 10kV
L1 to 4 : 1.5mH±20% 16A Rod core choke
Ct
Cx
F
: 3µF±5% 10kV
: Capacitor under test
: Fuse, Rated 10A
R
: 100Ω±2%
: UR±5%
: Rated Voltage
: Voltage applied to Ct
UAC
UR
Ut
Ux
5kV
time
*2 "Room condition" Temperature: 15 to 35°C, Relative humidity: 45 to 75%, Atmospheric pressure: 86 to 106kPa

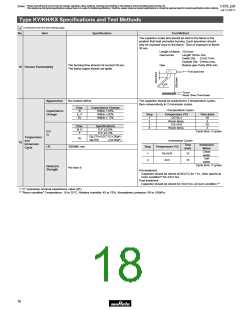

Continued on the following page.
