Appendix Parallel I/O Mode (Flash Memory Version)
Parallel I/O Mode
In this mode, the M16C/62 (flash memory version) operates in a manner similar to the flash memory
M5M29FB/T800 from Mitsubishi. Since there are some differences with regard to the functions not avail-
able with the microcomputer and matters related to memory capacity, the M16C/62 cannot be programed
by a programer for the flash memory.
Use an exclusive programer supporting M16C/62 (flash memory version).
Refer to the instruction manual of each programer maker for the details of use.
User ROM and Boot ROM Areas
In parallel I/O mode, the user ROM and boot ROM areas shown in Figure 1.28.1 can be rewritten. Both
areas of flash memory can be operated on in the same way.

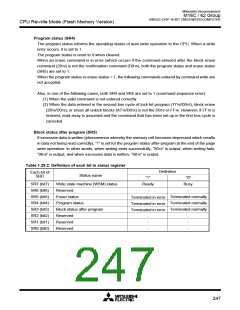

Program and block erase operations can be performed in the user ROM area. The user ROM area and its
blocks are shown in Figure 1.28.1.
The boot ROM area is 8 Kbytes in size. In parallel I/O mode, it is located at addresses 0FE00016 through
0FFFFF16. Make sure program and block erase operations are always performed within this address
range. (Access to any location outside this address range is prohibited.)
In the boot ROM area, an erase block operation is applied to only one 8 Kbyte block. The boot ROM area
has had a standard serial I/O mode control program stored in it when shipped from the Mitsubishi factory.
Therefore, using the device in standard serial input/output mode, you do not need to write to the boot
ROM area.
