an A/D acquisition must be done before the conversion
can be started. To calculate the minimum acquisition
time, Equation 7-1 may be used. This equation
assumes that 1/2 LSb error is used. The 1/2 LSb error is
the maximum error allowed for the ADC to meet its
specified resolution.
7.3
A/D Acquisition Requirements
For the ADC to meet its specified accuracy, the charge
holding capacitor (CHOLD) must be allowed to fully
charge to the input channel voltage level. The Analog

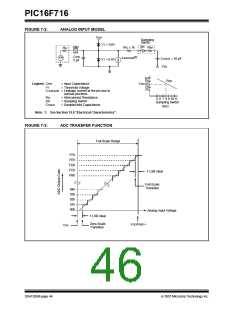

Input model is shown in Figure 7-2. The source
impedance (RS) and the internal sampling switch (RSS)
impedance directly affect the time required to charge the
capacitor CHOLD. The sampling switch (RSS) impedance
varies over the device voltage (VDD), see Figure 7-2.
The maximum recommended impedance for analog
sources is 10 kΩ. As the source impedance is
decreased, the acquisition time may be decreased.
After the analog input channel is selected (or changed),
EQUATION 7-1:
ACQUISITION TIME EXAMPLE
Temperature = 50°C and external impedance of 10kΩ 5.0V VDD
Assumptions:
TACQ = Amplifier Settling Time + Hold Capacitor Charging Time + Temperature Coefficient
= TAMP + TC + TCOFF
= 2μs + TC + [(Temperature - 25°C)(0.05μs/°C)]
The value for TC can be approximated with the following equations:
1
2047
⎛
⎞
;[1] VCHOLD charged to within 1/2 lsb
VAPPLIED 1 – ----------- = VCHOLD
⎝
⎠
–TC
---------
⎛
⎞
VAPPLIED 1 – e RC = VCHOLD
;[2] VCHOLD charge response to VAPPLIED
⎜
⎝
⎟
⎠
–Tc
--------
⎛
⎞
1
2047
VAPPLIED 1 – eRC = VAPPLIED 1 – -----------
⎛
⎞
⎠
;combining [1] and [2]
⎜
⎝
⎟
⎠
⎝
Solving for TC:
TC = –CHOLD(RIC + RSS + RS) ln(1/2047)
= –10pF(1kΩ + 7kΩ + 10kΩ) ln(0.0004885)
= 1.37μs
Therefore:
TACQ = 2μS + 1.37μS + [(50°C- 25°C)(0.05μS/°C)]
= 4.67μS
Note 1: The reference voltage (VREF) has no effect on the equation, since it cancels itself out.
2: The charge holding capacitor (CHOLD) is not discharged after each conversion.
3: The maximum recommended impedance for analog sources is 10 kΩ. This is required to meet the pin
leakage specification.
