MX29LV640BT/BB

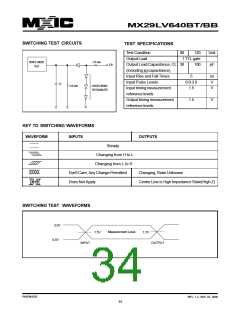

SWITCHING TEST CIRCUITS
TEST SPECIFICATIONS
Test Condition
Output Load
90
1 TTL gate
100
120
Unit
pF
DEVICE UNDER
TEST
2.7K ohm
Output Load Capacitance, CL 30
(including jig capacitance)
Input Rise and Fall Times
Input Pulse Levels
3.3V
5
ns
V
0.0-3.0
1.5
CL
6.2K ohm
DIODES=IN3064
OR EQUIVALENT
Input timing measurement
reference levels
V
Output timing measurement
reference levels
1.5
V
KEY TO SWITCHING WAVEFORMS
WAVEFORM
INPUTS
OUTPUTS
Steady
Changing from H to L
Changing from L to H
Don't Care, Any Change Permitted
Does Not Apply
Changing, State Unknown
Center Line is High Impedance State(High Z)
SWITCHING TEST WAVEFORMS
3.0V
Measurement Level
1.5V
1.5V
0.0V
INPUT
OUTPUT
P/N:PM1076
REV. 1.2, SEP. 07, 2005
34
