Ribbon Cable Interconnect Solutions

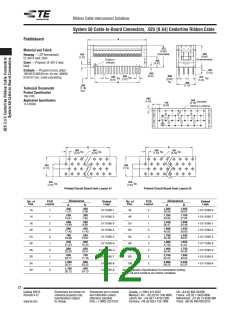

System 50 Cable-to-Board Connectors, .025 [0.64] Centerline Ribbon Cable
Product Facts
I Preassembled housing and
cover
I One-step termination
I End and daisy chain
termination
I Positive end latching of
connector to universal
header
I Terminates 30 AWG
[0.05 mm2] solid or
stranded and 32 AWG
[0.03 mm2] stranded
.025 [0.64] centerline
ribbon cable with PVC
insulation
I Connectors are RoHS
compliant
I Recognized under the
Component Program
of the Underwriters
R
Laboratories, Inc.
UL File No. E28476
I Certified by the
Canadian Standards
Association,
R
The System 50 Ribbon
Cable connector is a
conductors with PVC cable
insulation.
on the .050 x .100
File No. LR 7189
[1.27 x 2.54] grid. The
contacts are plated with
30 gold duplex plating. The
latching feature is located
on the receptacle, not the
header, and saves board
space and eliminates future
problems of “latch height
compatibility.”
receptacle connector that
will terminate ribbon cable
on .025 [0.64] centerlines.
It is available in select sizes
from 10 to 100 positions
and will accommodate 30
AWG [0.05 mm2] solid or
stranded and 32 AWG
[0.03 mm2] stranded
The housing and cover
are of a high temperature
tolerant thermoplastic
(black) with a UL 94V-0
rating. A phosphor bronze
single mating beam contact
provides the interconnect
between the conductor and
the .015 [0.38] square posts
8
Catalog 82012
Revised 4-12
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
Dimensions are in inches
and millimeters unless
otherwise specified.
