KEMET®
TANTALUM HERMETICALLY SEALED / AXIAL — MIL-C-39003

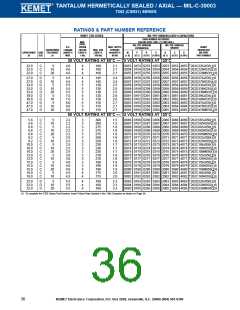

T262 (CSR21) SERIES
KEMET’s T262 (CSR21) per MIL-C-39003/09 hermetically sealed
solid tantalum capacitors are similar to KEMET’s popular T212
(CSR13 per MIL-C-39003/01) capacitors shown on page 96, but
offer higher ripple current handling capability and exhibit exception-
ally low Equivalent Series Resistance (ESR).
The T262 Series is ideal for filtering applications and in military
power supplies where low ESR is essential. T262s are 100% surge
current tested and their dissipation factor is screened at 1kHz.
Available in C & D case sizes only, 5.6 to 330 µF, 6 to 50 VDC.
CAPACITOR OUTLINE DRAWINGS
1.50±.250
(38.10±6.35)
1.50±.250
(38.10±6.35)
L
D
+
B
C
DIMENSIONS — INCHES & (MILLIMETERS)
UNINSULATED
INSULATED
D
L
D
L
B
C
MAX.
CASE
SIZE
±0.005
(±.13)
±0.031
(±.79)
±0.010
(±.25)
±0.031
(±.79)
±0.002
(±.05)
C
D
0.279 (7.09)
0.341 (8.66)
0.650 (16.51)
0.750 (19.05)
0.289 (7.34)
0.351 (8.92)
0.686 (17.42)
0.786 (19.96)
0.025 (.64)
0.025 (.64)
0.822 (20.88)
0.922 (23.42)
ORDERING INFORMATION
T 262 C 106 K 050 C S*
TANTALUM
SERIES
T262 — (CSR21)
CASE SIZE
C / D
LEAD MATERIAL
S — Standard (Solder-coated nickel)
PICOFARAD CODE
First two digits represent significant figures.
3rd digit specifies no. of zeros to follow.
FAILURE RATE
GRADED
EXPONENTIAL
M — 1%/k hrs.
P — 0.1%/k hrs.
R — 0.01%/k hrs.
S — 0.001%/k hrs.
B — 0.1%/k hrs.
C — 0.01%/k hrs.
D — 0.001%/k hrs.
CAP. TOLERANCE
M — ±20%
K — ±10%
J — ±5%
VOLTAGE RATING
*Part Number Example: T262C106K050CS (14 digits – no spaces)
At 85°C
For Military Marking Information, see page 4.
34
