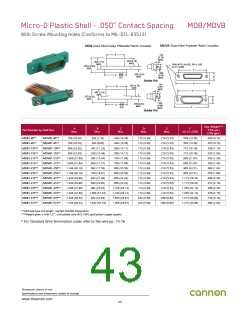

Micro-D Plastic Shell - .050” Contact Spacing
Dimension - MDB Coaxial Series
MDB
(See page 12 for layouts)
A
TWO MTG. HOLES
B
.091 +_ .003 (2.31 +_ 0.08) DIA.
.190 (4.83) Max.
C
Plug
E
E1
.250 (6.35) MAX.
+
+
.625 (15.88)
MAX.
EXTENSION FOR
RO AND RA
COAXES
D
1.000 (25.40) MAX.
Receptacle
A
TWO MTG. HOLES
.190 (4.83) Max.
.091 +_ .003 (2.31 +_ 0.08) DIA.
B
C
E
E1
.250 (6.35) MAX.
+
+
.625 (15.88)
MAX.
EXTENSION FOR
RO AND RA
COAXES
D
1.000 (25.40) MAX.
Part Number
A
Max.
B
Max.
C
Max.
D
E
E1
Max.
Avg. Weight**
(oz) +_ 5% (gm.) +_ 5%
By Shell Size
MDB1-7C2P*
MDB1-7C2S*
+_ .005 (0.13)
.782 (19.86)
.782 (19.86)
Max.
.510 (12.95)
.602 (15.29)
.204 (5.18)
.185 (4.70)
.298 (7.57)
.279 (7.09)
.395 (10.03)
.375 (9.52)
.510 (12.95)
.540 (13.72)
.290 (8.30)
.273 (7.80)
* Add lead type and length, see Part Number Explanation.
** Weight given is with 7 inch (177.80) insulated leads, #26 AWG silver plated copper pigtails and RG178/U coaxials.
Dimensions shown in mm
Specifications and dimensions subject to change
