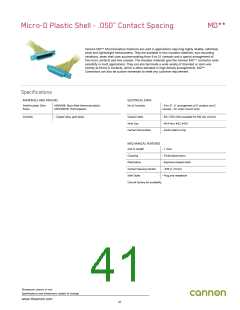

Micro-D Plastic Shell - .050” Contact Spacing MD*D-PCB
Cannon’s MD*D-PCB Microminiature Connectors are designed with standard, all-plastic shells for
use with flex circuitry, printed circuit and multi-layer boards. They are easily mounted and
soldered, and offer high density and high reliability in board-to-board and board-to-cable
applications. MD*D-PCB connectors are extremely small, lightweight and ruggedized for exceptional
performance in the harshest environments. They are available in seven shell sizes, with 9 to 51
contacts in the popular 90° narrow profile PCB termination and a variety of tail lengths for
varying board thickness. Jackpost mounting is also available for use with locking hardware.
How to Order
R
MD*B
-
37
S
CBR
*
L39
-
***
RoHS Compliance
Series
Contact Arrangement
Contact Type
Termination Type
Hardware
Termination Tail Length
Modification Codes (Consult Factory)
Connector Series
Termination Type
Termination Tail Length Codes
MDVB, MDB
CBR - 90° Narrow Profile PCB Terminations
None - .109 (2.77) 0.15 (0.38) Standard
L61 - .125 (3.18)
L66 - .150 (3.81)
L57 - .190 (4.83)
L39 - .250 (6.35)
Connector Arrangements
9-15-21-25-31-51
Hardware
P
- Jackpost
M7 - Jackposts, M635135-07
No Letter = Less Hardware
Contact Type
P - Pin
S - Socket
L58 - .375 (9.52)
Dimensions shown in mm
Specifications and dimensions subject to change
