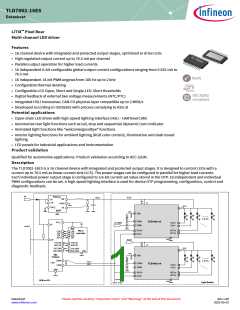

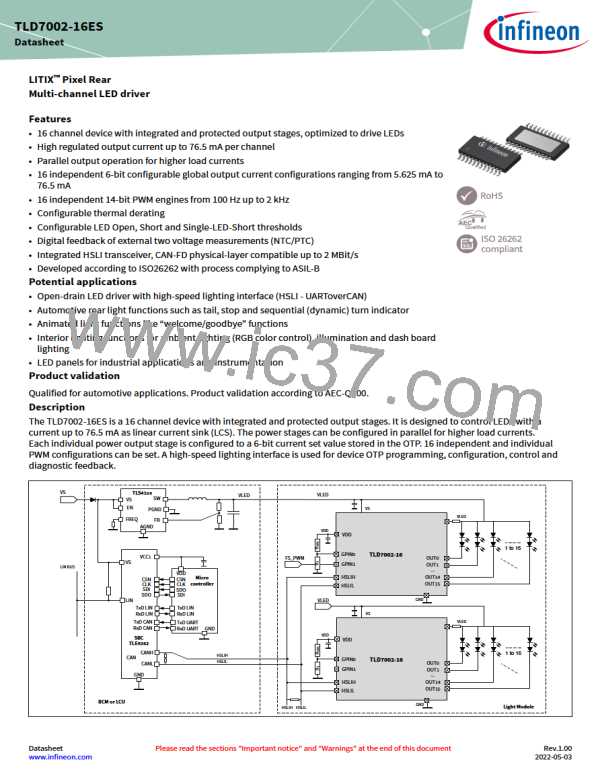

TLD7002-16ES
Datasheet
Description
Parameter
Symbol
VS(OP)
Values
Power supply operating voltage
Maximum output voltage
6.0 V ... 20 V
35 V
VOUT_max
IL_NOM
AIOUT,25
Vdr_min
Nominal load current (Linear current sink)
Output current accuracy TJ = 25°C
Minimum dropout voltage
75 mA, VLED = 5 V
5ꢀ
600 mV at 50 mA
Further features include the following:
• Configurable thermal derating to protect the LED load at high ambient temperature conditions
• Configurable LED Open, Short and Single-LED-Short thresholds for LED fault detection
• Digital feedback of external NTC/PTC temperature measurement and up to two separate LED forward voltage measurements
• High-speed lighting interface for LED control
• Integrated HSLI transceiver, CAN-FD physical-layer compatible and electrical characteristics compliant to ISO11898-2:2016
• Protocol based on UART with baud rate up to 2 MBit/s
• Integrated transceiver with very low electromagnetic emission (EME) allows the use without additional common mode choke
• Developed according to ISO26262 with process complying to ASIL-B
• Optimized for Electromagnetic Compatibility (EMC)
• Optimized for high immunity against Electromagnetic Interference (EMI)
• Green Product (RoHS compliant)
• AEC Qualified
Safety relevant features
• Configurable VFWD monitoring
• Programmable output current monitoring
• PWM duty cycle monitoring
• HSLI bus watchdog
• GPINn PWM warning
• Integrated load diagnostic features for open load, short circuit, single LED short, short between two adjacent strings detection.
• Programmable safe state in case of loss of communication
• Internal over temperature sensor
• Internal clock monitoring
• Individual fault and status flags readable via HSLI
• Configurable fault management and common open-drain output error pin ERRN
Type
Package
Marking
TLD7002-16ES
PG-TSDSO-24
TLD7002-16
Datasheet
2
Rev.1.00
2022-05-03
