TC1796
General Device Information

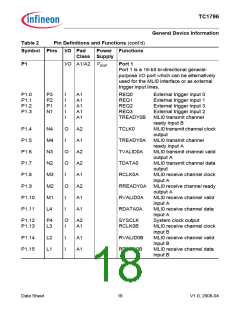

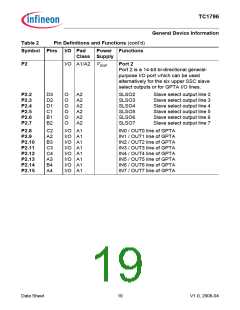

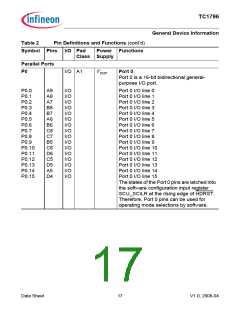

Table 2
Symbol Pins I/O Pad
Class Supply
I/O A1/A2 VDDP
Pin Definitions and Functions (cont’d)
Power Functions
P4
Port 4
Port 4 is a 16-bit bi-directional general-
purpose I/O port which can be alternatively
used for GPTA I/O lines.
P4.0
AD10 I/O A21)
AE10 I/O A21)
AD11 I/O A21)
AE11 I/O A21)
AC12 I/O A21)
AD12 I/O A21)
AF10 I/O A21)
AE12 I/O A21)
AC13 I/O A1
AF11 I/O A1
AF12 I/O A1
AD13 I/O A1
AC14 I/O A1
AE13 I/O A1
AF13 I/O A1
AD14 I/O A1
IN24 / OUT24 line of GPTA
IN25 / OUT25 line of GPTA
IN26 / OUT26 line of GPTA
IN27 / OUT27 line of GPTA
IN28 / OUT28 line of GPTA
IN29 / OUT29 line of GPTA
IN30 / OUT30 line of GPTA
IN31 / OUT31 line of GPTA
IN32 / OUT32 line of GPTA
IN33 / OUT33 line of GPTA
IN34 / OUT34 line of GPTA
IN35 / OUT35 line of GPTA
IN36 / OUT36 line of GPTA
IN37 / OUT37 line of GPTA
IN38 / OUT38 line of GPTA
IN39 / OUT39 line of GPTA
P4.1
P4.2
P4.3
P4.4
P4.5
P4.6
P4.7
P4.8
P4.9
P4.10
P4.11
P4.12
P4.13
P4.14
P4.15
Data Sheet
21
V1.0, 2008-04
