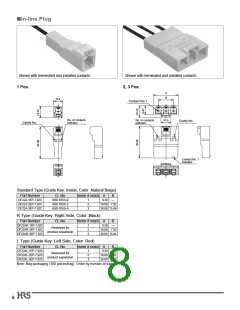

■In-line Plug
Shown with terminated and installed contacts.
Shown with terminated and installed contacts.
1 Pos.
2, 3 Pos.
A
B
9.3
Contact No.1
No. of contacts
indicator
No. of contacts
indicator
10.5
Cavity No.
Cavity No.
A
3
1
A
Contact No. 1
indicator
3
2
1
Standard Type (Guide Key: Inside, Color: Natural Beige)
Part Number
DF22A-1EP-7.92C
DF22A-2EP-7.92C
DF22A-3EP-7.92C
CL No.
Number of contacts
A
B
680-1053-0
680-1054-2
680-1055-5
1
2
3
9.30 -----
18.00 7.92
26.00 15.84
R Type (Guide Key: Right Side, Color: Black)
Part Number
DF22AR-1EP-7.92C
DF22AR-2EP-7.92C
DF22AR-3EP-7.92C
CL No.
Number of contacts
A
B
1
2
3
9.30 -----
18.00 7.92
26.00 15.84
Reserved for
product expansion
L Type (Guide Key: Left Side, Color: Red)
Part Number
DF22AL-1EP-7.92C
DF22AL-2EP-7.92C
DF22AL-3EP-7.92C
CL No.
Number of contacts
A
B
1
2
3
9.30 -----
18.00 7.92
26.00 15.84
Reserved for
product expansion
Note: Bag packaging (100 pieces/bag). Order by number of bags.
8
