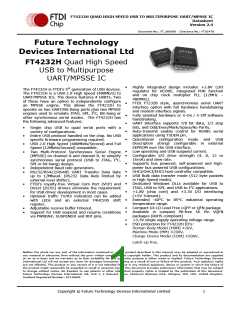

FT4232H QUAD HIGH SPEED USB TO MULTIPURPOSE UART/MPSSE IC
Datasheet
Version 2.4
Document No.: FT_000060 Clearance No.: FTDI#78
1 Typical Applications
Numerous combinations of 4 channels.
Upgrading Legacy Peripheral Designs to USB
Field Upgradable USB Products
Cellular and cordless phone USB data transfer
cables and interfaces.
Interfacing MCU / PLD / FPGA based designs to
USB
PDA to USB data transfer
USB Smart Card Readers
USB Instrumentation
Single chip USB to four channels UART (RS232,
RS422 or RS485) or Bit-Bang interfaces.
Single chip USB to 2 JTAG channels plus 2
UARTS.
Single chip USB to 1 JTAG channel plus 3
UARTS.
Single chip USB to 1 SPI channel plus 3 UARTS.
Single chip USB to 2 SPI channels plus 2
UARTS.
Single chip USB to 2 Bit-Bang channels plus 2
UARTS.
USB Industrial Control
USB MP3 Player Interface
USB FLASH Card Reader / Writers
Set Top Box PC - USB interface
USB Digital Camera Interface
USB Bar Code Readers
Single chip USB to 1 SPI channel, plus 1 JTAG
channel plus 2 UARTS.
Single chip USB to 2 I2C channels plus 2
UARTS.
1.1 Driver Support
The FT4232H requires USB drivers (listed below), available free from http://www.ftdichip.com, which
are used to make the FT4232H appear as a virtual COM port (VCP). This allows the user to communicate
with the USB interface via a standard PC serial emulation port (for example TTY). Another FTDI USB driver,
the D2XX driver, can also be used with application software to directly access the FT4232H through a DLL.
Royalty free VIRTUAL COM PORT
(VCP) DRIVERS for...
Royalty free D2XX Direct Drivers
(USB Drivers + DLL S/W Interface)
Windows 10 32,64-bit
Windows 10 32,64-bit
Windows 8/8.1 32,64-bit
Windows 7 32,64-bit
Windows 8/8.1 32,64-bit
Windows 7 32,64-bit
Windows Vista and Vista 64-bit
Windows XP and XP 64-bit
Windows Vista and Vista 64-bit
Windows XP and XP 64-bit
Windows 98, 98SE, ME, 2000, Server 2003, XP,
Server 2008 and server 2012 R2
Windows 98, 98SE, ME, 2000, Server 2003, XP,
Server 2008 and server 2012 R2
Windows XP Embedded
Windows CE 4.2, 5.0 and 6.0
Mac OS 8/9, OS-X
Windows XP Embedded
Windows CE 4.2, 5.0 and 6.0
Linux 2.4 and greater
Android(J2xx)
Linux 2.4 and greater
For driver installation, please refer to the installation guides on our website:
http://www.ftdichip.com/Support/Documents/InstallGuides.htm
The following additional installation guides application notes and technical notes are also available:
AN_113, “Interfacing FT2232H Hi-Speed Devices To I2C Bus”.
AN_109 – “Programming Guide for High Speed FTCI2C DLL”
AN_110 – “Programming Guide for High Speed FTCJTAG DLL”
AN_111 – “Programming Guide for High Speed FTCSPI DLL”
