Clock Functions
Limp-Home and Fast STOP Recovery modes
EXTALi
Clock Monitor Fail
Limp-Home
0 --> 4096
13-stage counter
(Clocked by XCLK)
BCSP
Restore BCSP
STOP (DLY = 1)
STOP (DLY = 0)
SYSCLK
PLLCLK (L.H.) Restore PLLCLK or EXTALi
Figure 11-5. STOP Exit and Fast STOP Recovery

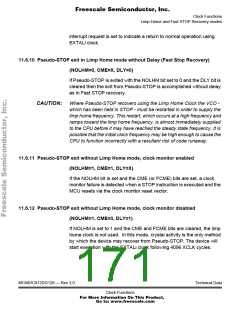

11.6.4 STOP exit without Limp Home mode, clock monitor disabled
(NOLHM=1, CME=0, DLY=X)
If Limp home mode is disabled (VDDPLL=VSS or NOLHM bit set) and the
CME (or FCME) bit is cleared, the MCU goes into STOP mode when a
STOP instruction is executed.
If EXTALi clock is present then exit from STOP will occur normally using
this clock. Under this condition, DLY should always be set to allow the
crystal to stabilise and minimise the risk of code runaway. With DLY=1
execution resumes after a delay of 4096 XCLK cycles.
NOTE: The external clock signal should stabilise within the 4096 reset counter
cycles. Use of DLY=0 is not recommended due to this requirement.
